Gamber Johnson Rugged Lite Backlit Keyboard and Quick Release Keyboard Cradle 7170-0817-01
Gamber Johnson Keyboard 7170-0817-01

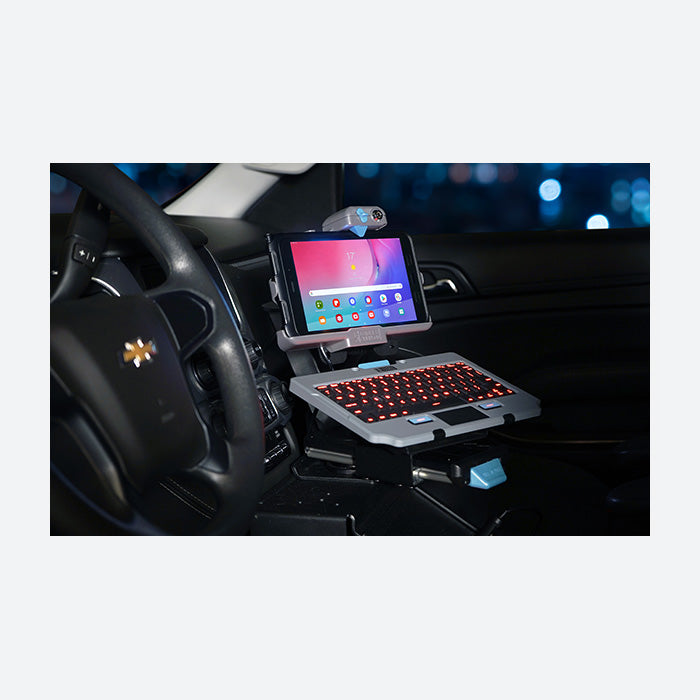

Gamber Johnson rugged lite backlit keyboard comes complete with quick release keyboard cradle mount. The quick release keyboard tray is compatible with the Rugged Lite Backlit Keyboard and enables the keyboard to be temporarily removed. The keyboard tray mounts with a VESA 75mm mounting pattern.
7170-0817-01 Features

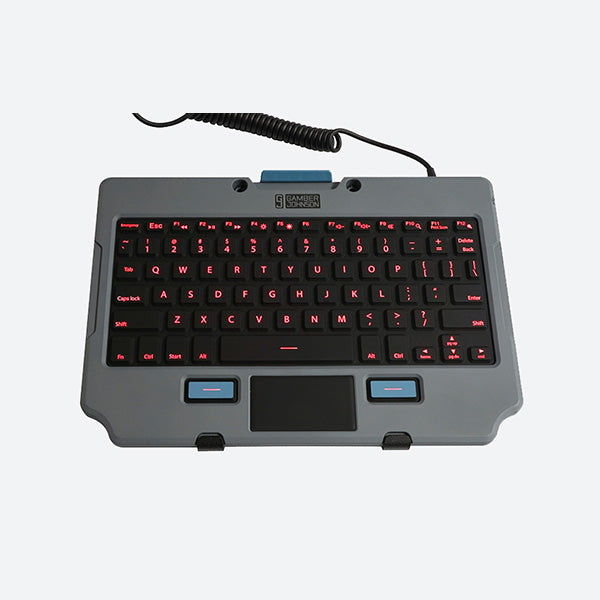

RUGGED LITE BACKLIT KEYBOARD FEATURES
- Integrated center Touchpad with right and left mouse button
- 76-key keyboard with 12 function keys for custom operation
- Integrated red backlighting with four levels of intensity and ON/OFF control
- Low-profile ergonomic design for ease of use in a mobile environment
- Emergency Key - a configurable key that can be used to send for emergency help or assistance
- Silicone rubber keys with white lettering and a rugged ABS polycarbonate case
- Input cable: USB Type A male connector (1.5 m/59.0 inch cable)
- Supports Windows (XP or Above), Android, Linux, and Mac OS / iOS platforms

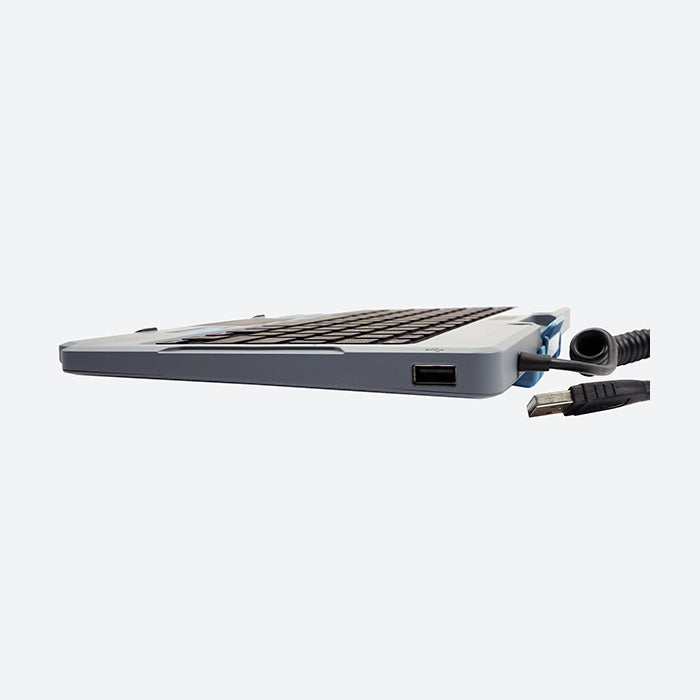

- USB- A port to attach a mouse, another peripheral, or flash drive (USB 2.0 500mA)
- Rubber feet to prevent slippage
- Keyboard is compatible with Gamber-Johnson custom keyboard tray (7160-1470-00)
- Available in US English (7160-1683-00), UK (7160-1683-01), German (7160-1683-02), French (7160-1683-03), and Spanish (7160-1683-04). Contact Gamber-Johnson for other language options. Minimum Order Quantity 250 units on all languages other than US English.

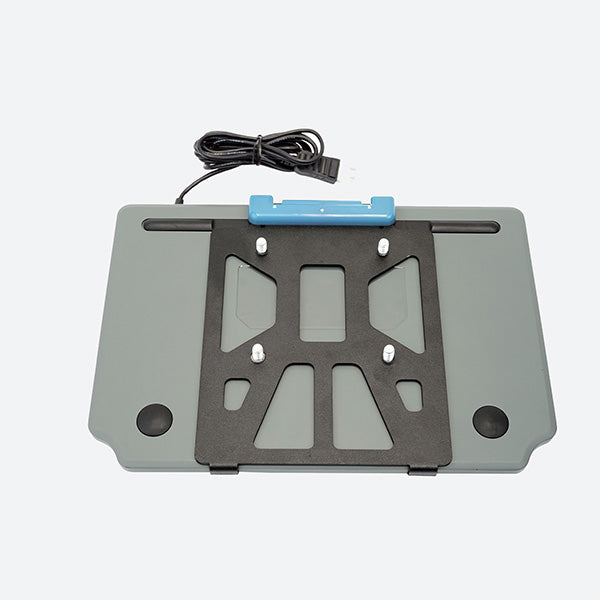

QUICK RELEASE KEYBOARD CRADLE FEATURES
- Easily insert or release the USB keyboard:
- Insert bottom of keyboard into tray, match indents in keyboard with hooks on tray, then push top of keyboard into tray and engage latch
- To remove, push latch to disengage and pull keyboard out of computer out of tray
- VESA 75mm mounting pattern, attach to most Gamber-Johnson motion attachments
- Black powder coat finish
Kit Includes:
- Rugged Lite Backlit Keyboard (7160-1683-00)
- Quick Release Keyboard Cradle for the Rugged Lite Keyboard (7160-1470-00)
7170-0817-01 Specifications
Weight
Keyboard: 1 lbs / 0.45 kg Keyboard Tray: 0.25 lbs / 0.11 kg
Height
Keyboard: 10.31 in / 26.19 cm Keyboard Tray: 5.5 in / 13.97 cm
Width
Keyboard: 0.56 in / 1.42 cm Keyboard Tray: 0.55 in / 1.4 cm
Depth
Keyboard: 7.12 in / 18.08 cm Keyboard Tray: 7.5 in / 19.05 cm
RUGGED LITE BACKLIT KEYBOARD SPECIFICATIONS
Power: 5Vdc @ <500mA from data cord
Designed and tested to MIL-STD 810G shock and vibration specifications
Temperature range: OPERATING: -20°C to 60°C STORAGE: -40°C to 85°C
Designed to IP54 ingress specifications
Two million actuations per key
