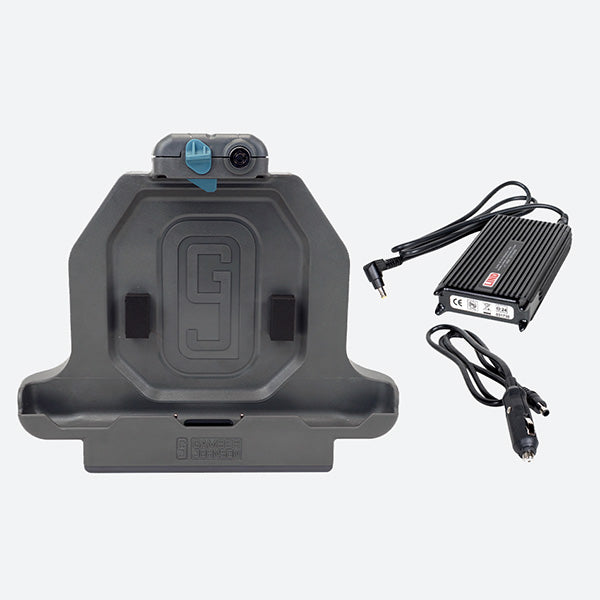

Gamber Johnson Zebra ET51/56 8-in. SLIM Charging Cradle w 11-16V Auto Power Adapter 7170-0853-00

Gamber Johnson7170-0853-00

Gamber Johnson slim charging cradle designed for Zebra ET51 and ET56 8 inch tablets.  This Gamber Johnson cradle kit comes with external LIND 11-16V auto power adapter.

7170-0853-00 Features

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • This cradle does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the cradle
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • Guide pins prevent damage to the charging pins when cradling the tablet
  • Powered POGO pins transfer power to the  Zebra tablet (requires external power adapter)
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of cradle
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8" SLIM Tablet Charging Cradle
  • LIND 11-16V auto power adapter
  • Mounting hardware
  • Installation guide

7170-0853-00 Specifications

Weight

Docking Station: 1.6 lbs / 0.73 kg Power Supply: 1.01 lbs / 0.46 kg

Height

Docking Station: 8.75 in / 22.23 cm Power Supply: 1.2 in / 3.05 cm

Width

Docking Station: 9.93 in / 25.22 cm Power Supply: 2.5 in / 6.35 cm

Depth

Docking Station: 3.12 in / 7.92 cm Power Supply: 5.15 in / 13.08 cm

Power Supply:

Yes - LIND 11-16 VDC input range; 12 VDC output voltage; 3.5 Amps output current with cigarette lighter adapter (7300-0415)

Testing Specifications:

MIL-STD 810G Shock/Vibration Tested
MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
SAE J1455 Crash Tested
Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
RoHS, FCC, CE Certifications

Port Replicators:

Power Input 12VDC through pogo pin connector

Antenna Pass-through:

No RF

Compatibility: Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
