Gamber Johnson Zebra ET51/56 8-in. SLIM Charging Cradle w LIND 20-60 VDC Power Adapter 7170-0853-20
Gamber Johnson Cradle 7170-0853-20
Gamber Johnson slim charging cradle designed for Zebra ET51 and ET56 8 inch tablets. This Gamber Johnson cradle kit comes with external LIND 20-60 VDC isolated power adapter.
7170-0853-20 Features
- Designed for the Zebra ET50/51/55/56 8" rugged tablet computer with rugged frame
- This cradle does not accommodate ET51/56 accessories
- Front camera on ET5X accessible when the tablet is in the cradle
- Compatible with Windows or Android operating systems
- Access to all control buttons and ports while the tablet is safely docked
- Guide pins prevent damage to the charging pins when cradling the tablet
- Powered POGO pins transfer power to the Zebra tablet (requires external power adapter)
- Composite/aluminum design for reduced weight and extended durability
- Designed with rounded edges to enhance personal safety
- Keyed lock for security and theft deterrence
- Forward facing docking latch/release for easy one-handed operation:
- Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
- To remove, lift latch to disengage and pull computer out of cradle
- VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

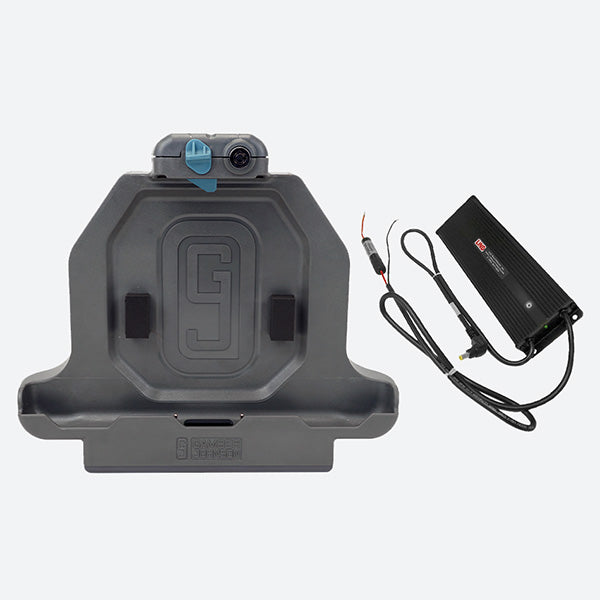

Kit Includes:
- Zebra ET50/51/55/56 8" SLIM Tablet Charging Cradle
- LIND 20-60V isolated power adapter
- Mounting hardware
- Installation guide
7170-0853-20 Specifications
Weight
Docking Station: 1.6 lbs / 0.73 kg Power Supply: 1.6 lbs / 0.73 kg
Height
Docking Station: 8.75 in / 22.23 cm Power Supply: 1.15 in / 2.92 cm
Width
Docking Station: 9.93 in / 25.22 cm Power Supply: 9.3 in / 23.62 cm
Depth
Docking Station: 3.12 in / 7.92 cm Power Supply: 3 in / 7.62 cm
Power Supply:
Yes - LIND isolated material handling power adapter; 20-60 VDC input range; 12 VDC output voltage; 3.5 Amps output current with bare wire lead (7300-0467)
Testing Specifications:
MIL-STD 810G Shock/Vibration Tested
MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
SAE J1455 Crash Tested
Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
RoHS, FCC, CE Certifications
Port Replicators:
Power Input 12VDC through pogo pin connector
Antenna Pass-through:
No RF
Compatibility: Compatible with Zebra ET50/51/55/56 rugged tablet computer with rugged frame
