Gamber-Johnson

Gamber Johnson Zebra ET51/56 8-in. SLIM Dock w 12-32 VDC Power Adapter 7170-0854-12

Gamber Johnson Dock 7170-0854-12

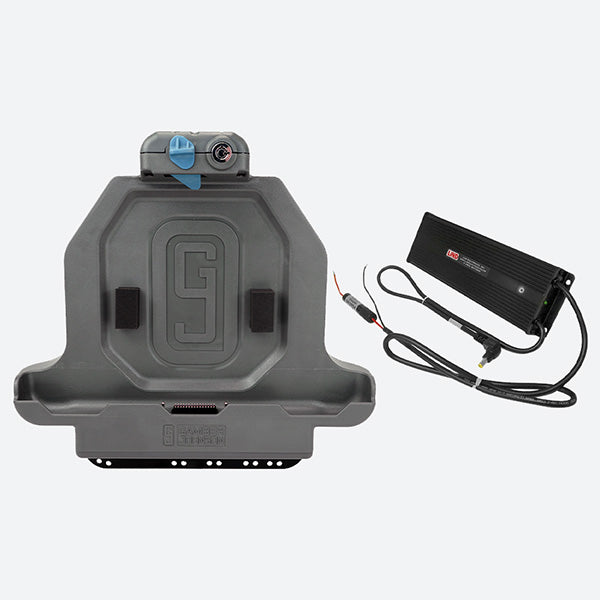

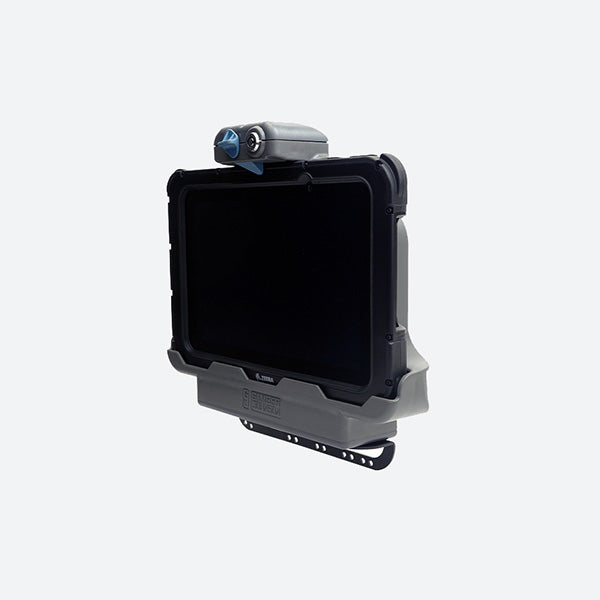

Zebra ET51/56 8 inch SLIM Port Replication Docking Station w/External LIND 12-32 VDC Isolated Power Adapter.

7170-0854-12 Features

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • Zebra Certified with  Zebra Certified electronics
  • This dock does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8" SLIM Port Replication Docking Station
  • LIND Power adapter
  • Mounting hardware
  • Installation guide

7170-0854-12 Specifications

Weight

Docking Station: 2.2 lbs / 1 kg Power Supply: 1.01 lbs / 0.46 kg

Height

Docking Station: 8.75 in / 22.23 cm Power Supply: 1.2 in / 3.05 cm

Width

Docking Station: 9.93 in / 25.22 cm Power Supply: 2.5 in / 6.35 cm

Depth

Docking Station: 3.12 in / 7.92 cm Power Supply: 5.15 in / 13.08 cm

Port Replicators:

Zebra Certified Electronics
USB 3.0 (2) - 9 pin (900mA)
RS232 Serial (1) - Power on pin 9 (825mA)
Ethernet (1) - RJ45 (322 mb/s)
Power Input: 12VDC

Antenna Pass-through: No RF

Power Supply: Yes - LIND isolated material handling power adapter; 12-32 VDC input range; 12 VDC output voltage; 3.5 Amps output current with bare wire lead (7300-0466)

$822.69 USD
$822.69 USD
Shipping calculated at checkout.
