Gamber Johnson Zebra ET51/56 10 SLIM Charging Cradle w 11-16V Auto Power Adapter 7170-0873-00

Gamber Johnson Cradle 7170-0873-00

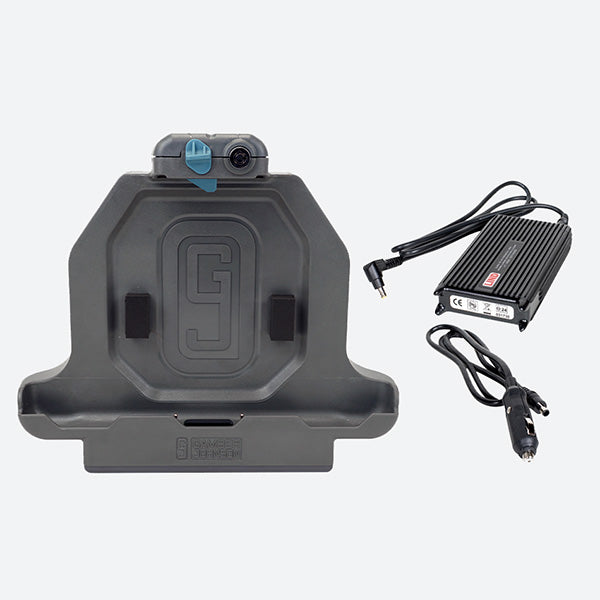

Gamber Johnson slim charging cradle for Zebra ET51/56 10 inch tablet with external LIND 11-16V auto power adapter.

7170-0873-00 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This cradle does not accommodate ET51/56 accessories Front camera on ET5X accessible when the tablet is in the cradle
• Compatible with Windows or Android operating systems
• Access to all control buttons and ports while the tablet is safely docked
• Guide pins prevent damage to the charging pins when cradling the tablet
• Powered POGO pins transfer power to the Zebra tablet (requires external power adapter)
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
  • To remove; lift latch to disengage and pull computer out of cradle
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson's Zirkona mounting products

7170-0873-00 Specifications

Weight

1.8lbs

Height

10.67 in

Width

11.72 in

Depth

3.06 in

Power Supply:

Yes - LIND 11-16 VDC input range; 12 VDC output voltage; 3.5 Amps output current with cigarette lighter adapter (7300-0415)

Testing Specifications:

MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity; High/Low Temperature; (storage/operational)

SAE J1455 Crash Tested Cycle

Tested: 30K Cycles; Docking Connector; Latching & Locking Mechanisms

RoHS; FCC; CE Certifications

Port Replicators:

Power Input 12VDC through pogo pin connector
