Gamber Johnson Zebra ET51/5610 SLIM Dual USB Dock w/MP205 12-32VDC Power Adapter 7170-0891-12

Gamber Johnson Dock 7170-0891-12

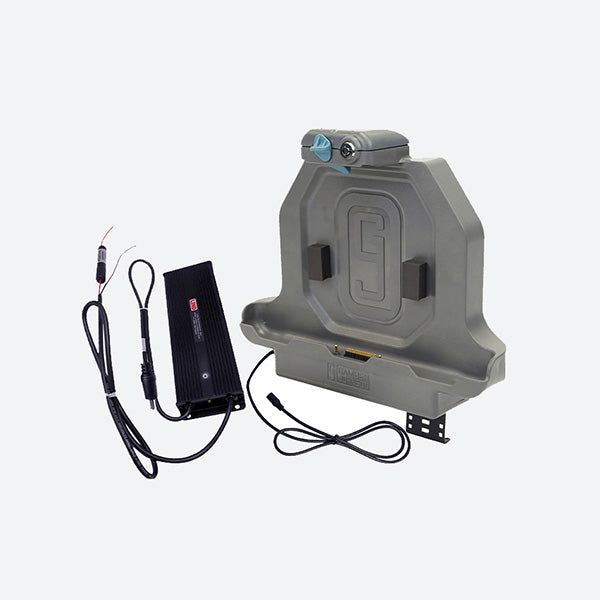

Zebra ET51/5610 SLIM Dual USB Docking Station w/MP205 and External LIND 12-32VDC Isolated Power Adapter.

7170-0891-12 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This docking station does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with Windows or Android operating systems
• POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
• 8-40V power input range with power filtering PCB
• Dual powered USB ports; 1.5A for each port to connect peripheral devices
• Access to all control buttons and ports while the tablet is safely docked

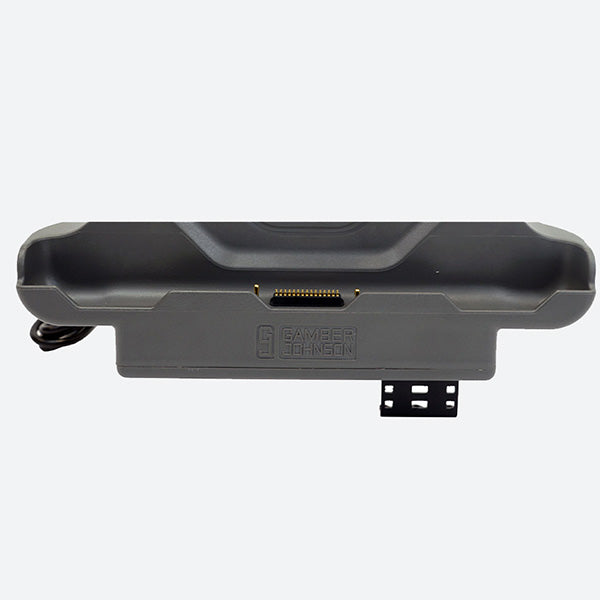

• Bottom-facing I/O ports; integrated cable restraint/cable management system
• 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
• Composite/aluminum design for reduced weight and extended durability Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • -Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
  • To remove; lift latch to disengage and pull computer out of docking station
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson's Zirkona mounting products

7170-0891-12 Specifications

Weight

1.9 lbs

Height

11.37 in

Width

11.72 in

Depth

3.05 in

Power Supply:

Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked Includes LIND 12-32V isolated material handling power adapter with MP205 connection (7300-0447)

Port Replicators:

(2) Powered USB 2.0 (1.5A each)
