Gamber Johnson Zebra ET51/56 10? SLIM Dual USB Docking Station w/MP205 70-110 VDC Isolated Power Adapter 7170-0891-70

Gamber Johnson Dock 7170-0891-70

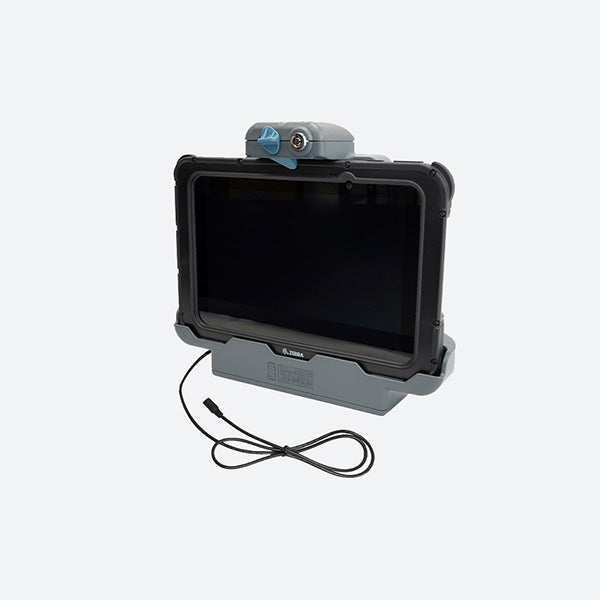

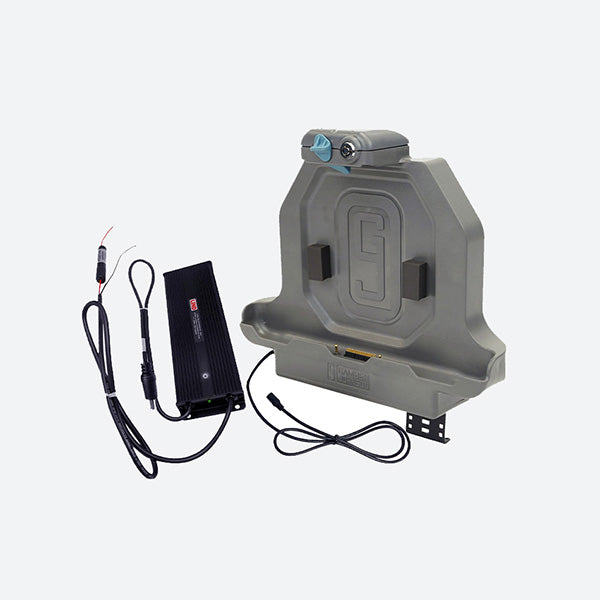

Zebra ET51/5610 SLIM Dual USB Docking Station w/MP205 and External LIND 70-110 VDC Isolated Power Adapter. Gamber-Johnson’s Zebra ET51/56 10? SLIM Dual USB docking station provides dual powered (1.5A each) USB ports; strong enough to connect a long-range scanner and other peripherals. This kit includes a LIND isolated material handling power adapter with MP205 connector to quickly attach to the docking station.

7170-0891-70 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This docking station does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with Windows or Android operating systems POGO pin connector and internal powered PCB provides power to charge the Zebra tablet while docked
• 8-40V power input range with power filtering PCB
• Dual powered USB ports; 1.5A for each port to connect peripheral devices
• Access to all control buttons and ports while the tablet is safely docked Bottom-facing I/O ports; integrated cable restraint/cable management system
• 40" power cable with MP205 in-line jack to quickly connect to a compatible power adapter
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
  • To remove; lift latch to disengage and pull computer out of docking station
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson's Zirkona mounting products

7170-0891-70 Specifications

Port Replicators:

Powered USB 2.0 (1.5A each)

Power Supply:

Internal powered PCB with 8-40V power input range provides power to charge the Zebra tablet while docked Includes LIND 70-110V isolated material handling power adapter with MP205 connection (7300-0448)
