Gamber-Johnson

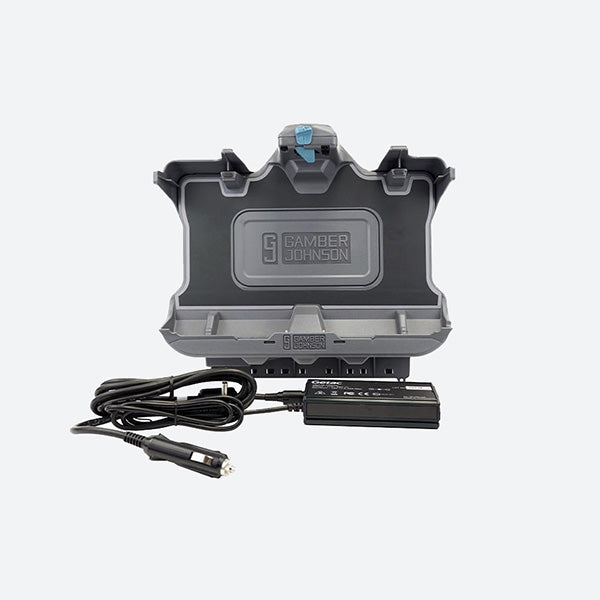

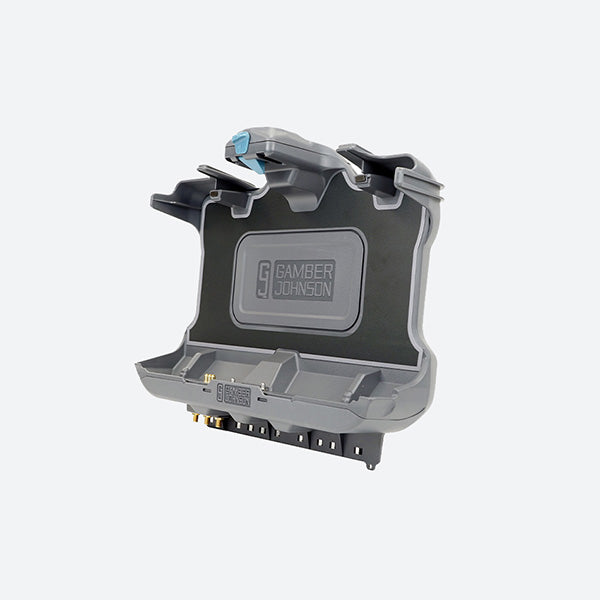

Gamber Johnson Getac F110 Vehicle Cradle w Cigarette Lighter Power Adapter 7170-0901-00

Gamber Johnson Cradle 7170-0901-00

Designed only to secure the Getac F110 to a mount, the Gamber Johnson cradle 7170-0901-00 kit does include a Getac 120W cigarette lighter power supply. The included cigarette lighter tipped power supply would plug directly into the F110 tablet while mounted in the cradle. If you require a docking solution for the F110 with more features such as port replication or RF pass through, please send us an email with your needs at sales@ruggedordie.com so we can prepare a free quote with the optimal equipment for your solution. Alternatively our chat service is always manned by real humans and never by bots, chat with us during our regular business hours of Mon-Fri 8-6PM!

7170-0901-00 Features

  • Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
  • Cradle accommodates the tablet's mag strip reader and rotating hand strap
  • Access to all tablet control buttons and ports while the tablet is cradled
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

Kit Includes:

  • Getac F110 Vehicle Cradle
  • Getac 120W auto power adapter with cigarette lighter connector
  • Mounting Hardware
  • Installation Instructions

7170-0901-00 Specifications

Weight

Cradle: 2.58 lbs / 1.17 kg Power Adapter: 0.7 lbs / 0.32 kg

Height

Cradle: 13.33 in / 33.86 cm Power Adapter: 5.1 in / 12.95 cm

Width

Cradle: 11.75 in / 29.85 cm Power Adapter: 2.6 in / 6.6 cm

Depth

Cradle: 4.69 in / 11.91 cm Power Adapter: 1.2 in / 3.05 cm

Power Supply:

Getac 120W automotive power adapter with cigarette lighter connector (7300-0471) is included with this kit.

Input voltage 12-32 VDC
Output voltage 19VDC
Output current 6.32 amps (max)
Cigarette adapter connector
NOTE: With the tablet in the cradle; the power adapter will plug directly into the tablet computer.

Testing Specifications:

  • Getac Certified
  • RoHS; FCC; CE; UKCA
  • MIL-STD 810H vibration testing: Operational/Non-operational
  • Shock crash hazard: SAE J1455; Mechanical Shock 40g
  • Environmental: Thermal Shock; Humidity; High/Low Temperature - Storage/Operational
  • Cycle Testing: Docking Connector; Latch and Locking mechanism - 30;000 cycles

Antenna Pass-through:

No RF

$376.09 USD
$376.09 USD
Shipping calculated at checkout.
