Gamber Johnson Getac F110 Vehicle Cradle w No RF and Getac Power Adapter 7170-0901-10

Gamber Johnson Cradle 7170-0901-10

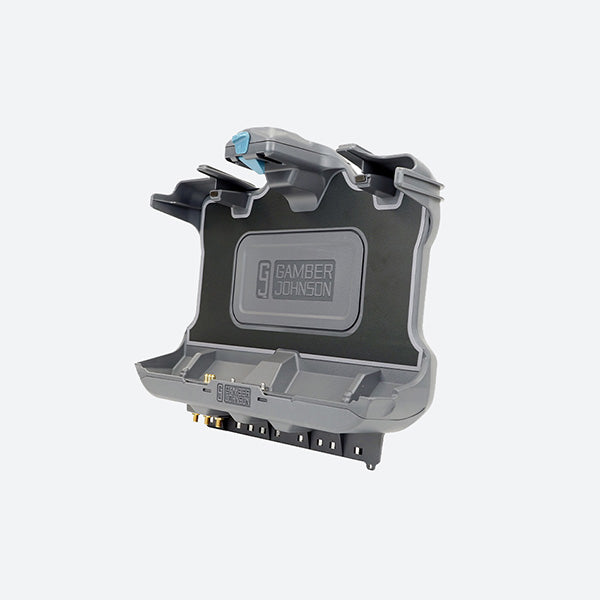

Designed to simply hold the Getac F110 safely and securely, the Gamber Johnson cradle 7170-0901-10 does includes a bare wire power supply. The included bare wire supply would plug directly into the F110 tablet while mounted in the cradle. The 7170-0901-10 includes a locking latch for anti-theft security. If you require a docking solution for the F110 with more features such as port replication or RF pass through, please send us an email with your needs at sales@ruggedordie.com so we can prepare a free quote with the optimal equipment for your solution.

7170-0901-10 Features

7170-0901-10 Specifications

Weight

Cradle: 2.58 lbs / 1.17 kg Power Adapter: 0.7 lbs / 0.32 kg

Height

Cradle: 13.33 in / 33.86 cm Power Adapter: 5.1 in / 12.95 cm

Width

Cradle: 11.75 in / 29.85 cm Power Adapter: 2.6 in / 6.6 cm

Depth

Cradle: 4.69 in / 11.91 cm Power Adapter: 1.2 in / 3.05 cm

Power Supply:

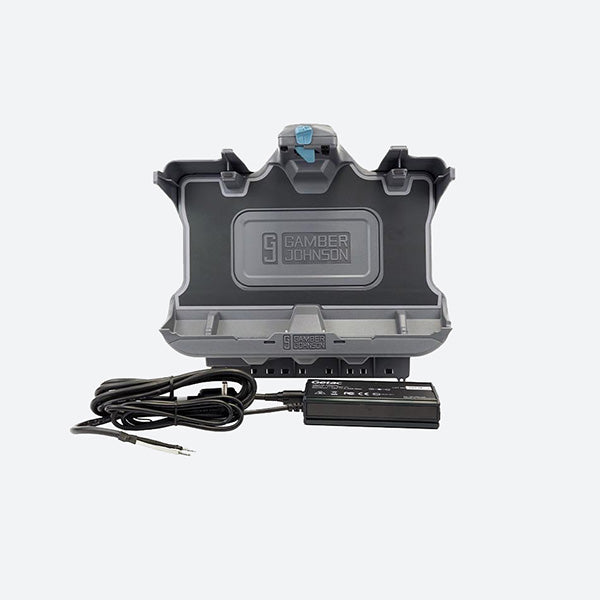

Getac 120W automotive power adapter with bare wire lead (7300-0516) is included with this kit.

Input voltage 12-32 VDC
Output voltage 19VDC
Output current 6.32 amps (max)
Bare wire lead
NOTE: With the tablet in the cradle; the power adapter will plug directly into the tablet computer.

Testing Specifications:

Getac Certified
RoHS; FCC; CE; UKCA
MIL-STD 810H vibration testing: Operational/Non-operational
Shock crash hazard: SAE J1455; Mechanical Shock 40g
Environmental: Thermal Shock; Humidity; High/Low Temperature - Storage/Operational
Cycle Testing: Docking Connector; Latch and Locking mechanism - 30;000 cycles

Antenna Pass-through:

No RF
