Gamber-Johnson

Gamber Johnson Getac F110 Vehicle Dock w Tri RF and Power Adapter 7170-0902-03

Gamber Johnson Dock 7170-0902-03

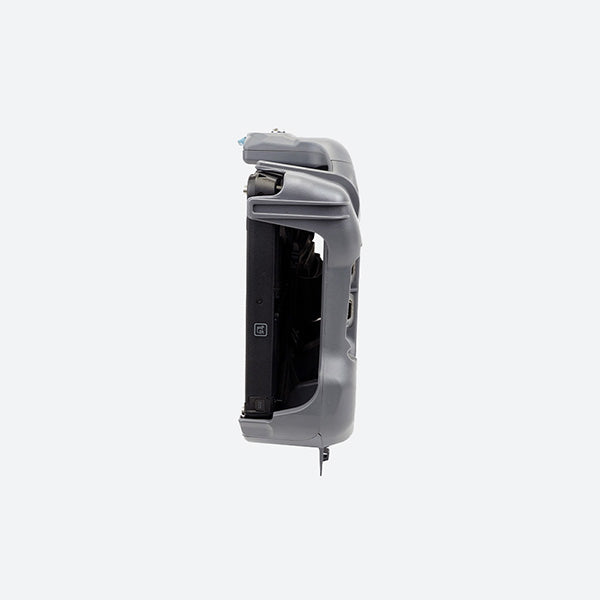

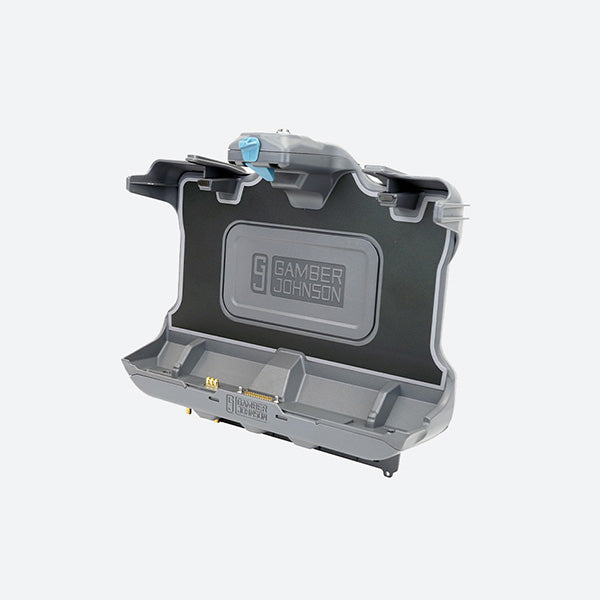

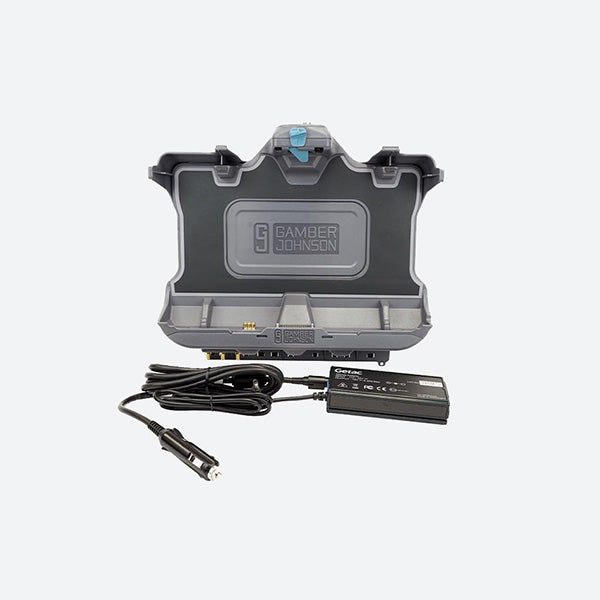

Built for the Getac F110 tablet, the Gamber Johnson 7170-0902-03 Vehicle Docking Station comes complete with a Getac 120W Auto Power Adapter with Cigarette Lighter Connector and tri RF pass through. This Gamber Johnson F110 dock has a VESA 75mm mounting pattern making it able to attach to a wide range of Gamber Johnson motion attachments. The 7170-0902-03 features ports including speaker/mic port, ethernet port, HDMI port, USB 3.0 port, VGA port and quantity 3 USB 2.0 ports along with power input. The vehicle mounting and docking experts at Rugged or Die can help you assemble the 7170-0902-03 into a full vehicle mounting solution for your F110, call us today at 816-388-0035 or send us an email with your requirements at sales@ruggedordie.com

7170-0902-03 Features

  • Getac certified electronics
  • Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
  • Docking station accommodates the tablet's mag strip reader and rotating hand strap
  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern
  • TRI-RF SMA

Kit Includes:

  • Getac F110 Vehicle Docking Station
  • Getac 120W auto power adapter with cigarette lighter connector
  • Mounting Hardware
  • Installation Instructions

7170-0902-03 Specifications

Weight

Docking Station: 2.88 lbs / 1.31 kg Power Adapter: 0.7 lbs / 0.32 kg

Height

Docking Station: 13.33 in / 33.86 cm Power Adapter: 5.1 in / 12.95 cm

Width

Docking Station: 11.75 in / 29.85 cm Power Adapter: 2.6 in / 6.6 cm

Depth

Docking Station: 4.69 in / 11.91 cm Power Adapter: 1.2 in / 3.05 cm

Port Replicators:

Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin
Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone


Antenna Pass-through: Tri RF
