Gamber Johnson Getac F110 Vehicle Dock w Power Adapter 7170-0902-10

Gamber Johnson Dock 7170-0902-10

Crafted exclusively for the rugged Getac F110 tablet, the Gamber Johnson 7170-0902-10 Vehicle Docking Station comes complete with a Getac 120W Auto Power Adapter with bare wire leads (part number 7300-0516.) This Gamber Johnson F110 dock has a VESA 75mm mounting pattern making it able to attach to a wide range of Gamber Johnson motion attachments such as the Mongoose motion attachment (part number 7160-0220.) The 7170-0902-10 does not have any RF pass through for antennas but does feature port replication including speaker/mic port, ethernet port, HDMI port, USB 3.0 port, VGA port and quantity 3 USB 2.0 ports along with power input. If external antenna pass through is a required feature please consider Gamber Johnson part number 7170-0902-13 instead. The vehicle mounting and docking experts at Rugged or Die can help you assemble this computer dock into a full vehicle mounting solution for your F110, call us today at 816-388-0035 or send us an email with your requirements at sales@ruggedordie.com

7170-0902-10 Features

  • Getac certified electronics

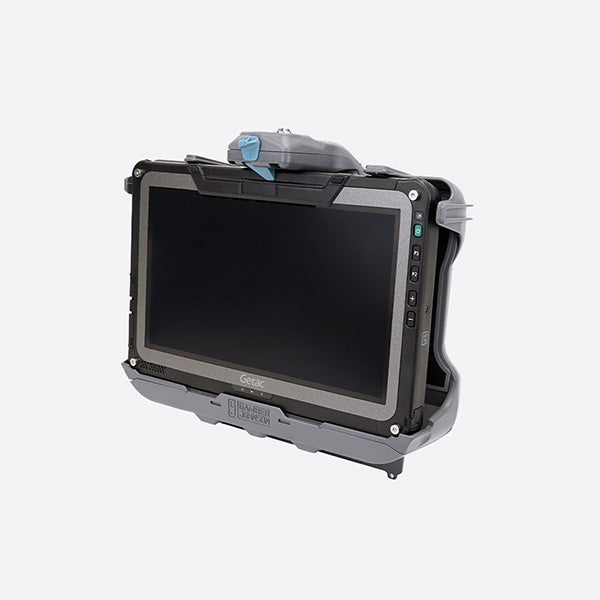

  • Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
  • Docking station accommodates the tablet's mag strip reader and rotating hand strap
  • Access to all tablet control buttons and ports while the tablet is docked
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

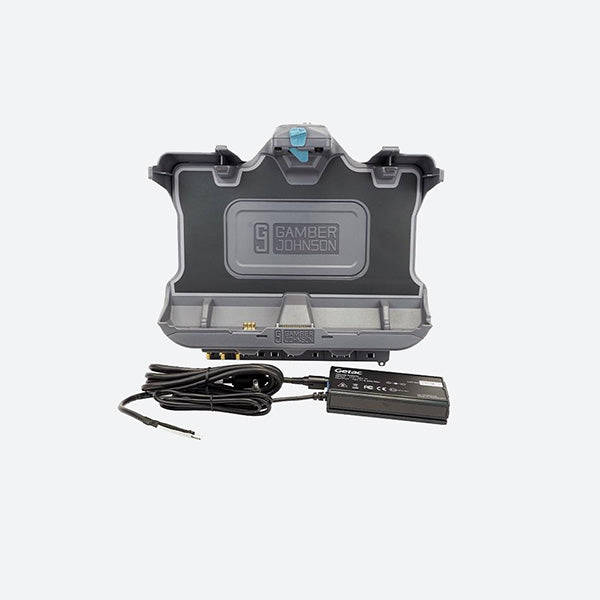

Kit Includes:

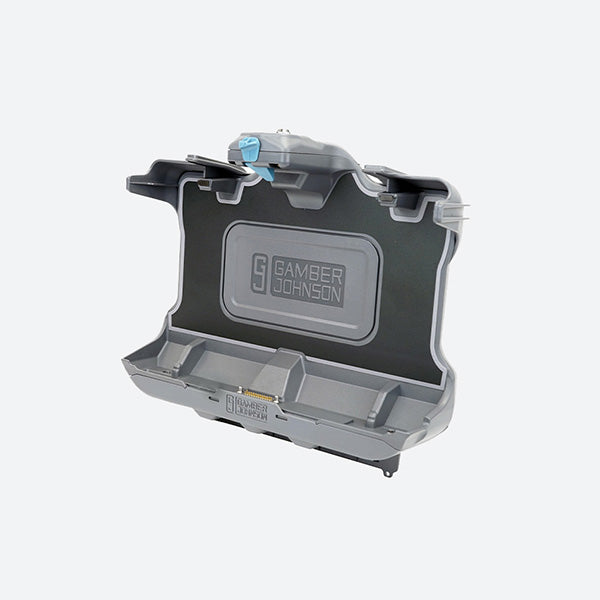

  • Getac F110 Vehicle Docking Station
  • Getac 120W auto power adapter with bare wire lead
  • Installation Instructions

7170-0902-10 Specifications

Weight

Docking Station: 2.88 lbs / 1.31 kg Power Adapter: 0.7 lbs / 0.32 kg

Height

Docking Station: 13.33 in / 33.86 cm Power Adapter: 5.1 in / 12.95 cm

Width

Docking Station: 11.75 in / 29.85 cm Power Adapter: 2.6 in / 6.6 cm

Depth

Docking Station: 4.69 in / 11.91 cm Power Adapter: 1.2 in / 3.05 cm

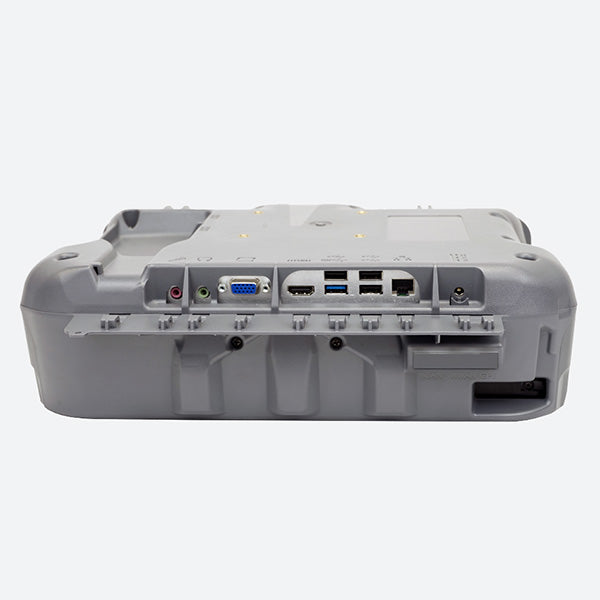

Port Replicators:

Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone


Antenna Pass-through: No RF

$636.83 USD
$636.83 USD
Shipping calculated at checkout.
