Gamber Johnson Getac F110 Vehicle Dock w Tri RF and Power Adapter 7170-0902-13
Gamber Johnson Dock 7170-0902-13

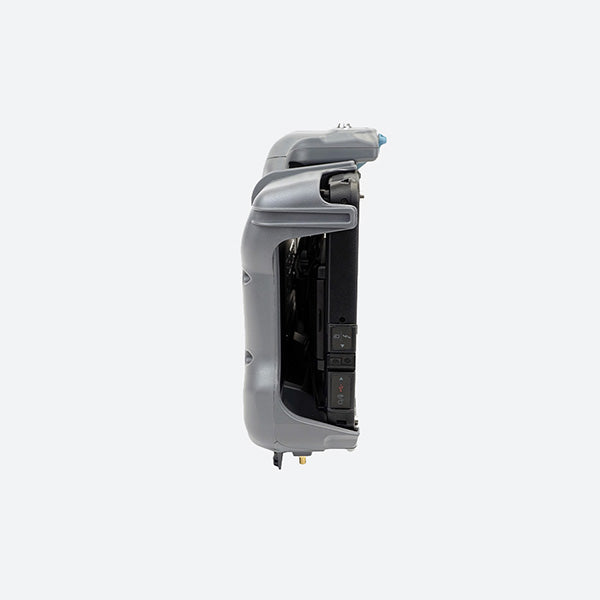

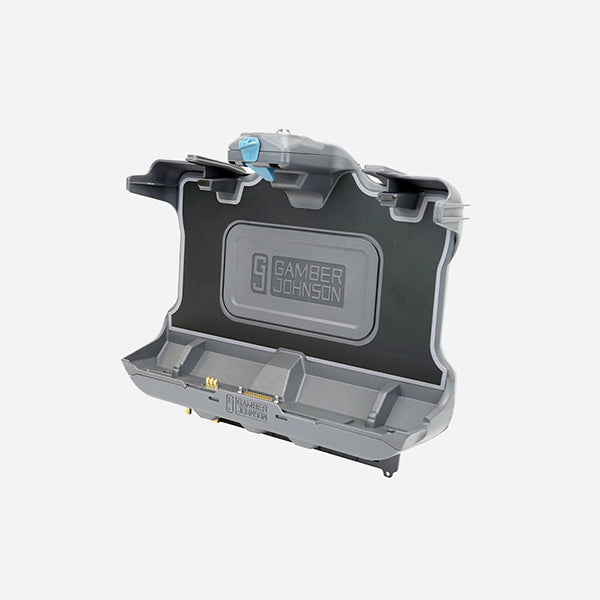

Gamber Johnson designed the 7170-0902-13 for the rugged Getac F110 tablet, and the vehicle docking station comes complete with a Getac 120W Auto Power Adapter with bare wire leads (part number 7300-0516) and Tri RF pass through. Featuring a VESA 75mm mounting pattern on the back of the dock makes it able to attach to a wide range of Gamber Johnson motion attachments such as the Mongoose motion attachment (part number 7160-0220.) The 7170-0902-13 has RF pass through for external antennas and offers full port including speaker/mic port, ethernet port, HDMI port, USB 3.0 port, VGA port and quantity 3 USB 2.0 ports along with power input. The vehicle mounting and docking experts at Rugged or Die can help you assemble this computer dock into a full vehicle mounting solution for your F110, call us today at 816-388-0035 or send us an email with your requirements at sales@ruggedordie.com
7170-0902-13 Features
- Getac certified electronics
- Compatible with the Getac F110 G7 tablet and all previous versions of the F110 tablet
- Docking station accommodates the tablet's mag strip reader and rotating hand strap
- Access to all tablet control buttons and ports while the tablet is docked

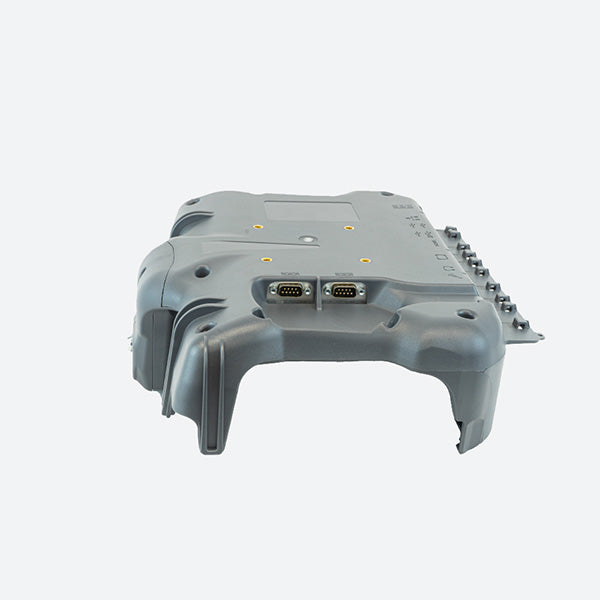

- Downward-facing I/O ports; integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments
- One-hand docking and release for efficient use all day long
- Keyed lock for theft deterrence
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- VESA 75mm mounting pattern
- TRI-RF SMA

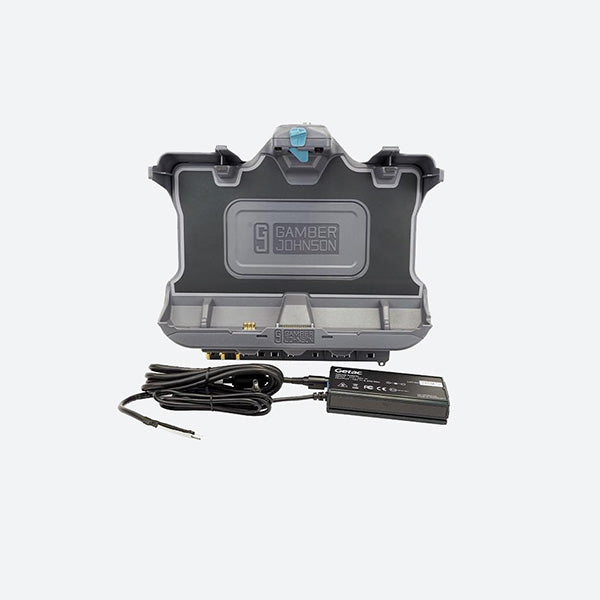

Kit Includes:
- Getac F110 Vehicle Docking Station
- Getac 120W auto power adapter with bare wire lead
- Mounting Hardware
- Installation Instructions
7170-0902-13 Specifications
Weight
Docking Station: 2.88 lbs / 1.31 kg Power Adapter: 0.7 lbs / 0.32 kg
Height
Docking Station: 13.33 in / 33.86 cm Power Adapter: 5.1 in / 12.95 cm
Width
Docking Station: 11.75 in / 29.85 cm Power Adapter: 2.6 in / 6.6 cm
Depth
Docking Station: 4.69 in / 11.91 cm Power Adapter: 1.2 in / 3.05 cm

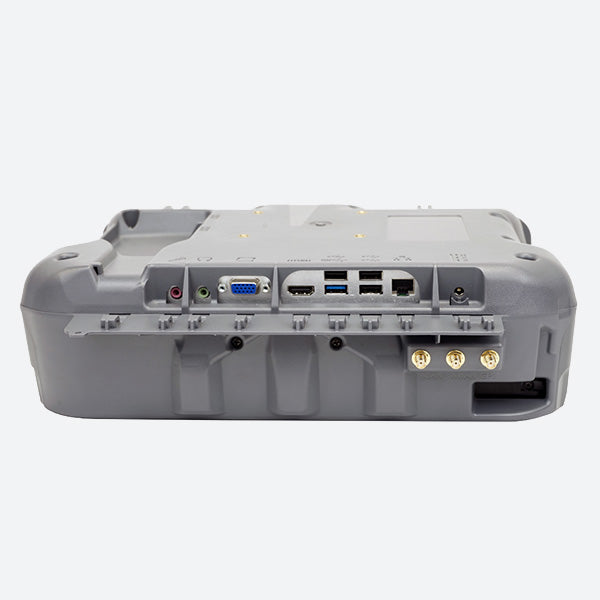

Port Replicators:
Getac certified electronics
(1) Ethernet - RJ45
(3) USB 2.0 (500mA) - 4 pin
(1) USB 3.0 (900mA) - 9 pin
(1) VGA D-sub - 9 pin
(1) HDMI - 19 pin
Tri RF Pass-through (optional) - SMA
Power input - 19VDC
(1 each) Speakers / Microphone
Antenna Pass-through: Tri RF
