Gamber-Johnson

Gamber Johnson Notepad V-LT Universal Cradle 7170-0907

Gamber Johnson Cradle 7170-0907

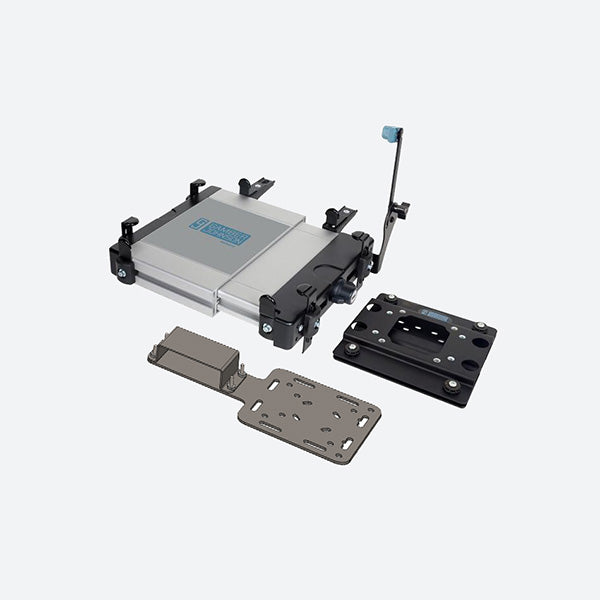

Gamber Johnson Notepad V-LT kit includes the universal cradle, screen support, isolator plate, and power supply mount. Ready to attach to a Gamber-Johnson motion attachment to complete your vehicle solution.

7170-0907 Features

Notepad V Universal Cradle:

  • Cradle is extruded aluminum with adjustable height, width, and depth
  • Special “flanged” side clip design provides superior strength and can be easily adjusted
  • Sliding mounting bar on the bottom allows for multiple positions for offset capabilities when used with a the motion attachment
  • 90 degrees wing turn closure latch allows for fast initial size adjustment allows for quick computer insertion and removal has built-in heavy duty key lock (keyed alike)


Screen Support:

  • Attaches to the back right corner of the cradle and can be positioned up to 40 degrees backward or 100 degrees forward


Shock/vibration Isolator Plate:

  • Positioned between any Motion Attachment and Gamber-Johnson Docking Station or Cradle
  • VESA 75mm and Gamber-Johnson 2" x 4.09" mounting hole patterns


LIND Power Supply Mount:

  • Attaches between the Docking Station/Cradle and Motion Attachment of any Gamber-Johnson Docking Station or Cradle with VESA or Gamber-Johnson hole pattern.
  • Accommodates many LIND power supply models

Kit Includes:

  • Notepad V-LT Universal Cradle
  • Notepad V Screen Support
  • Shock / vibration Isolator Plate
  • Power Supply Mount
  • Installation Guides
  • Mounting Hardware

7170-0907 Specifications

Weight

NOTEPAD V-LT UNIVERSAL CRADLE: 6.5 lbs / 2.95 kg NOTEPAD V SCREEN SUPPORT: 0.5 lbs / 0.23 kg SHOCK / VIBRATION ISOLATOR PLATE: 2.43 lbs / 1.1 kg LIND POWER SUPPLY MOUNT: 1.52 lbs / 0.69 kg KIT: 9.95 lbs / 4.51 kg

Height

NOTEPAD V-LT UNIVERSAL CRADLE: 1.62 in / 4.11 cm NOTEPAD V SCREEN SUPPORT: 8.75 in / 22.23 cm SHOCK / VIBRATION ISOLATOR PLATE: 0.85 in / 2.16 cm LIND POWER SUPPLY MOUNT: 5 in / 12.7 cm

Width

NOTEPAD V-LT UNIVERSAL CRADLE: 11.75 in / 29.85 cm NOTEPAD V SCREEN SUPPORT: 2.5 in / 6.35 cm SHOCK / VIBRATION ISOLATOR PLATE: 7 in / 17.78 cm LIND POWER SUPPLY MOUNT: 10.01 in / 25.43 cm

Depth

NOTEPAD V-LT UNIVERSAL CRADLE: 9.5 in / 24.13 cm NOTEPAD V SCREEN SUPPORT: 1.5 in / 3.81 cm SHOCK / VIBRATION ISOLATOR PLATE: 6.5 in / 16.51 cm LIND POWER SUPPLY MOUNT: 1.27 in / 3.23 cm

Compatibility:

DEPTH ADJUSTABLE:
Adjusts to computer depths from 7.58” - 9.33”

THICKNESS ADJUSTABLE:
Adjusts to computer thickness (measured with screen open) from 0” - 1.5”

LIND power supply mount accommodates many LIND power adapter models
