Gamber Johnson TOUGHBOOK FZ-G2/FZ-G1 Dock w Dual RF and Power Adapter 7170-0930-02
Gamber Johnson Dock 7170-0930-02
Panasonic TOUGHBOOK FZ-G2 and Toughpad FZ-G1 Docking Station with Dual RF, VESA Hole mounting Pattern and with LIND 11-16V Auto Power Adapter with Bare Wire Lead. This Panasonic Toughpad FZ-G1 and FZ-G2 docking station accommodates the tablet’s extended battery, smart card reader, rear hand strap and large bumper guards. This docking station features full port replication, dual antenna pass-through, and a VESA 75mm mounting pattern. This Kit includes a LIND power adapter.
7170-0930-02 Features
- Compatible with the Panasonic Toughpad FZ-G1 and FZ-G2 tablet computers with small or large bumper guards
- Panasonic certified electronics
- Docking station accommodates the tablet's extended battery; smart card reader; rear hand strap and large bumper guards.
- Access to all tablet control buttons and ports while tablet is docked
- Easy docking and release; Insert computer into the docking station; push top of dock down and engage lock to dock computer
- Upward-facing I/O ports; integrated cable strain relief and cable management system
- Keyed lock for theft deterrence
- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- Dual RF TNC

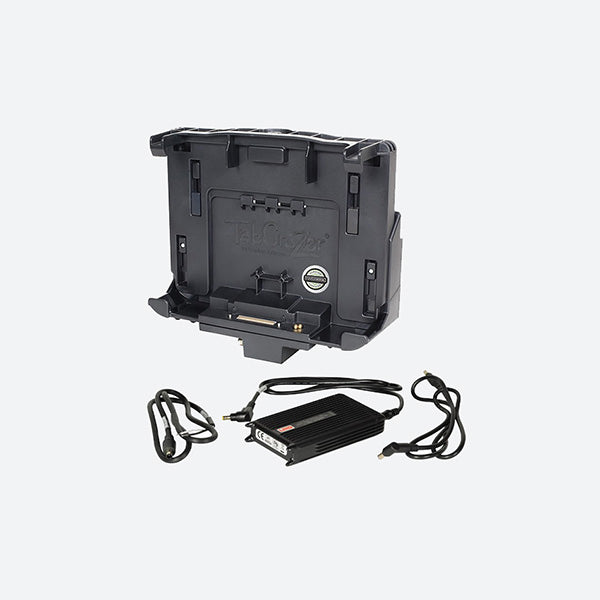

Kit Includes:
- Panasonic FZ-G1 and FZ-G2 TOUGHBOOK Docking Station
- LIND 11-16V Auto Power Adapter
- Installation Instructions
7170-0930-02 Specifications
Weight
Docking Station: 2.5 lbs / 1.13 kg Power Adapter: 1.22 lbs / 0.55 kg
Height
Docking Station: 9.33 in / 23.7 cm Power Adapter: 1 in / 2.54 cm
Width
Docking Station: 11.22 in / 28.5 cm Power Adapter: 5 in / 12.7 cm
Depth
Docking Station: 2.56 in / 6.5 cm Power Adapter: 3 in / 7.62 cm
Port Replicators:
Panasonic certified electronics
(1) Ethernet - RJ45
(1) Serial - D-sub 9-pin
(1) VGA - D-sub 9 pin
(1) HDMI - 19 pin
(2) USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch
Antenna Pass-through: Dual RF
