Gamber-Johnson

Gamber Johnson Panasonic FZ-G1 THIN Dock w Dual RF and Power Adapter 7170-0931-02

Gamber Johnson Dock 7170-0931-02

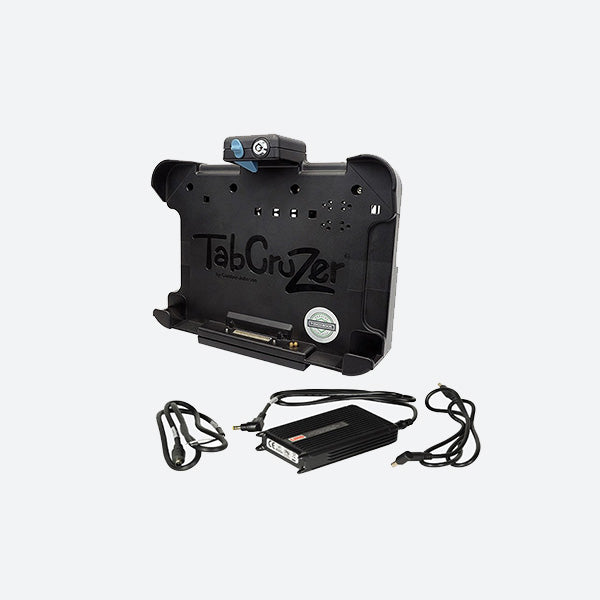

KIT: Panasonic TOUGHpad FZ-G1 THIN Docking Station with Dual RF and LIND 11-16V Auto Power Adapter with Bare Wire Lead. This dock features dual RF antenna connection, full port replication and includes an auto power adapter.

7170-0931-02 Features

  • ompatible with the Panasonic TOUGHpad FZ-G1 tablet computer with small bumper guards
  • Panasonic certified electronics
  • Docking Station is designed to perfectly fit the G1 tablet with small corner guards and without extra accessories; thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy to use one-handed docking and release; Insert bottom of computer into the docking station; push top of computer against latch button to dock computer
  • To remove; push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Dual RF TNC

Kit Includes:

  • Panasonic FZ-G1 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

7170-0931-02 Specifications

Weight

Docking Station: 2.5 lbs / 1.13 kg Power Adapter: 1.22 lbs / 0.55 kg

Height

Docking Station: 9.33 in / 23.7 cm Power Adapter: 1 in / 2.54 cm

Width

Docking Station: 11.22 in / 28.5 cm Power Adapter: 5 in / 12.7 cm

Depth

Docking Station: 2.56 in / 6.5 cm Power Adapter: 3 in / 7.62 cm

Port Replicators:

Panasonic certified electronics
(1) Ethernet - RJ45
(1) Serial - D-sub 9-pin
(1) VGA - D-sub 9 pin
(1) HDMI - 19 pin
(2) USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch


Antenna Pass-through: Dual RF

$823.55 USD
$823.55 USD
Shipping calculated at checkout.
