Gamber Johnson TOUGHBOOK 40 Dock w/ LIND 120W Full Port No RF 7170-0943-00

Gamber Johnson Dock 7170-0943-00

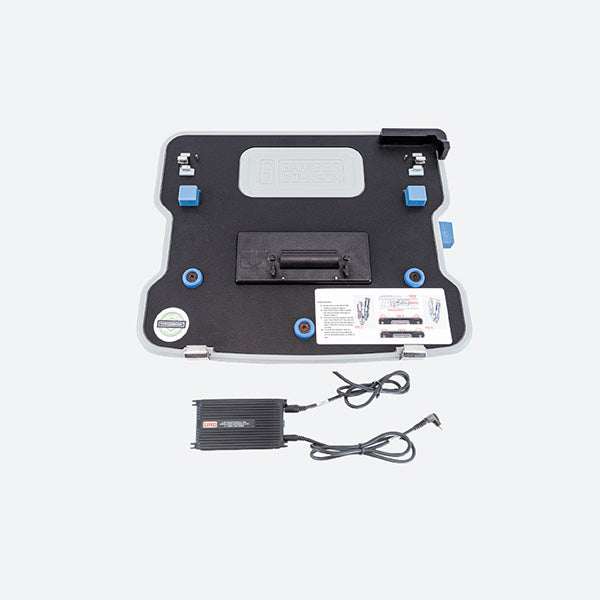

Panasonic TOUGHBOOK 40 Docking Station with LIND 120W Auto Bare Wire Leads Power Adapter and full port replication. Full port replication includes: Ethernet; Serial; HDMI; USB-A; USB-C; and USB-C with DisplayPort. Docking station kit includes Panasonic TOUGHBOOK 40 docking station with No RF (7160-1728-00) and Lind external power adapter (7300-0461).

7170-0943-00 Features

• Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
• Access to all computer control buttons and most ports while docked
• Rear-facing I/O ports; integrated cable strain relief and cable management system
• LED indicator light reflects docking connection to ensure proper docking
• Shutter cover for extra docking connector protection
• Designed to the footprint of the computer to preserve cabin space

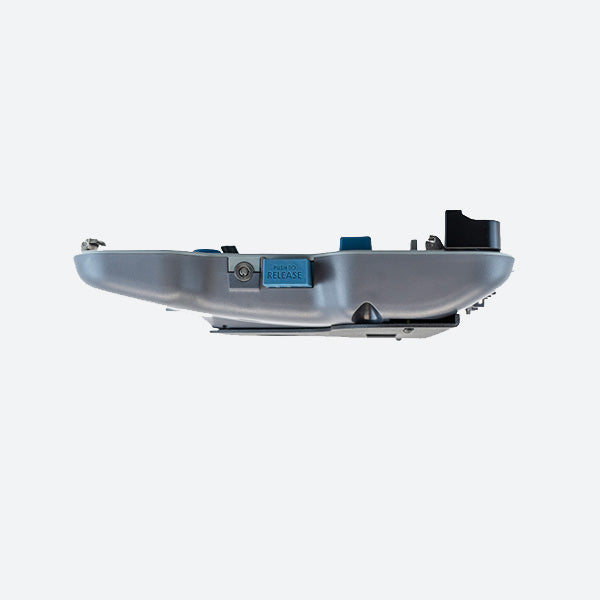

• Right-facing docking/release latch for easy docking and undocking
• Keyed lock for theft deterrence
• Gamber-Johnson rugged construction and reliability
• Composite design for reduced weight and durability
• VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments

7170-0943-00 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

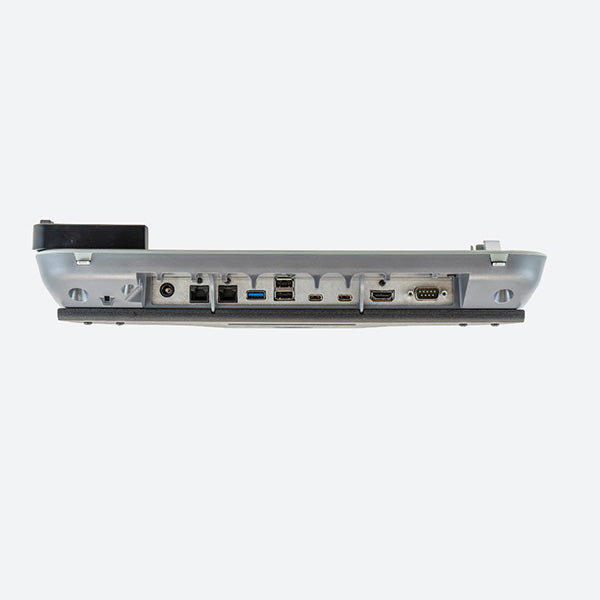

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(1) HDMI; 19 pin
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)

*The two USB Type-C ports support DisplayPort Alternate Mode. (When the two ports are connected; only one port can be used for display output. The port closer to the HDMI port takes priority)

Antenna Pass-through: No RF
