Gamber-Johnson

Gamber Johnson TOUGHBOOK 40 Full Port Replication Dock w Power Adapter and Quad RF 7170-0943-02

Gamber Johnson Dock 7170-0943-02

Panasonic TOUGHBOOK 40 Docking Station with LIND 120W Auto Bare Wire Leads Power Adapter, full port replication and quad RF.  Full port replication includes: Ethernet; Serial; HDMI; USB-A; USB-C; and USB-C with DisplayPort. Docking station kit includes Panasonic TOUGHBOOK 40 docking station with Quad RF (7160-1728-02) and Lind external power Adapter (7300-0461).

7170-0943-02 Features

  • Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked

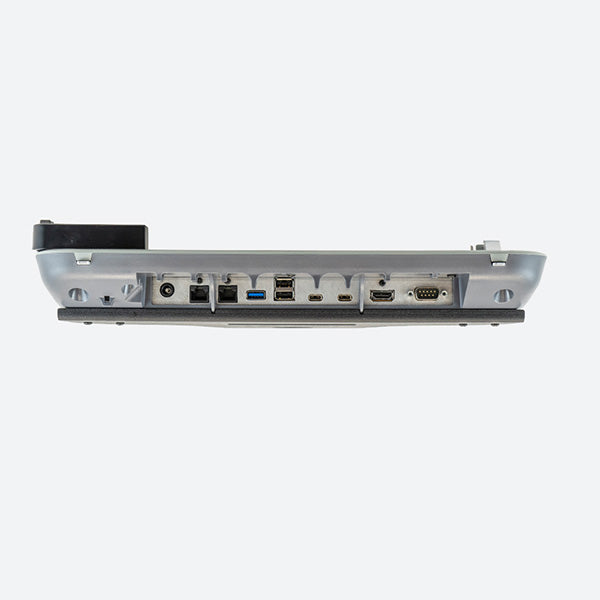

  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space
  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
  • Quad RF SMA

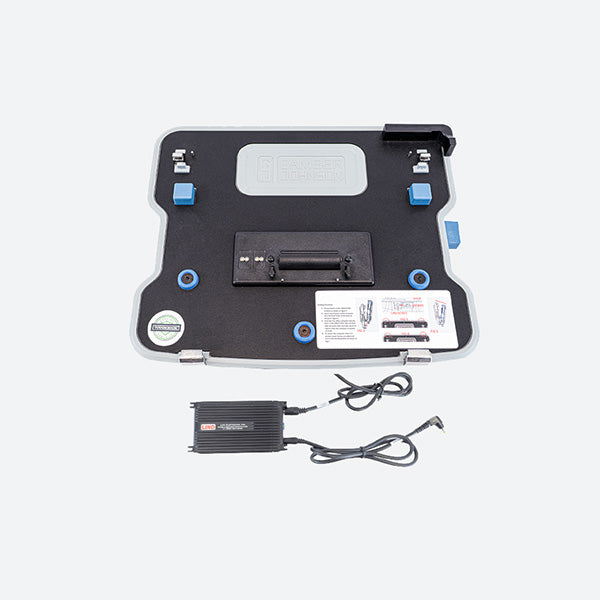

Kit Includes:

  • Panasonic TOUGHBOOK 40 Docking Station; Quad RF (7160-1728-02)
  • Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic (7300-0461)
  • Mounting Hardware
  • Installation Instructions

7170-0943-02 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

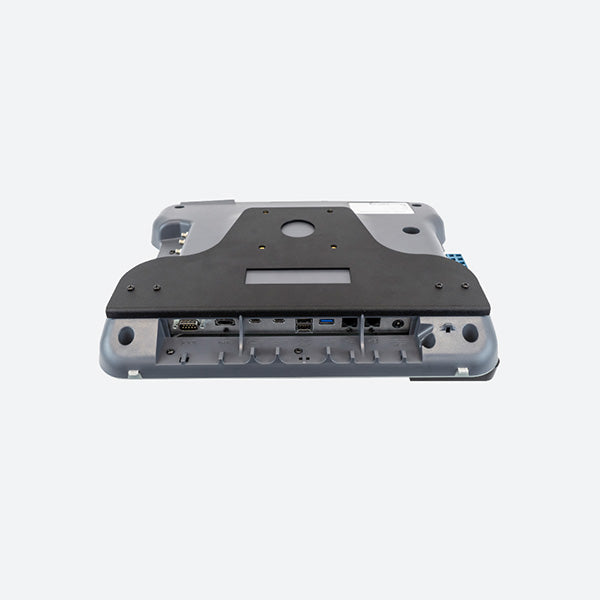

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(1) HDMI; 19 pin (1 each) Mic / Aux
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)
*The two USB Type-C ports support DisplayPort Alternate Mode. When the two ports are connected; only one port can be used for display output. The port closer to the HDMI port takes priority).


Antenna Pass-through: Quad RF

$1,498.54 USD
$1,498.54 USD
Shipping calculated at checkout.
