Gamber-Johnson

Gamber Johnson TOUGHBOOK 40 Lite Port Replication Dock w Power Adapter 7170-0944-00

Gamber Johnson Dock 7170-0944-00

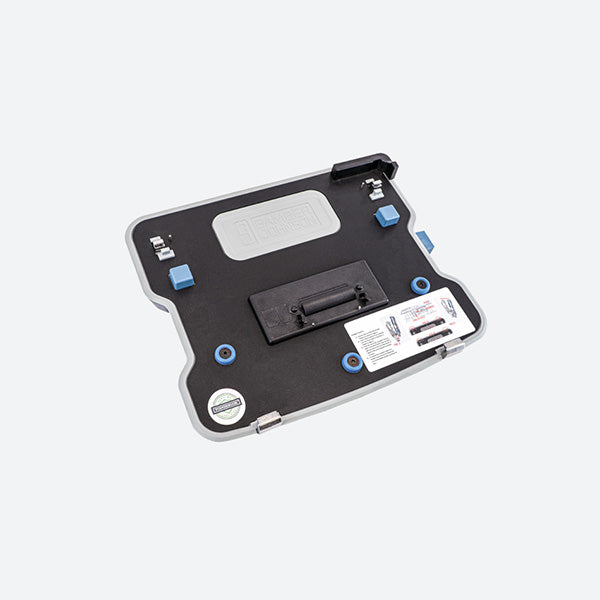

Panasonic TOUGHBOOK 40 Docking Station with LIND 120W Auto Bare Wire Leads Power Adapter and lite port replication including Ethernet; Serial; USB-A; and USB-C. Docking station kit includes Panasonic TOUGHBOOK 40 docking station with Lite port replication and No RF (7160-1728-06) and Lind external power adapter (7300-0461).

7170-0944-00 Features

  • Uses Panasonic TOUGHBOOK Certified electronics for reliable connectivity
  • Access to all computer control buttons and most ports while docked
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • LED indicator light reflects docking connection to ensure proper docking
  • Shutter cover for extra docking connector protection
  • Designed to the footprint of the computer to preserve cabin space
  • Right-facing docking/release latch for easy docking and undocking
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments

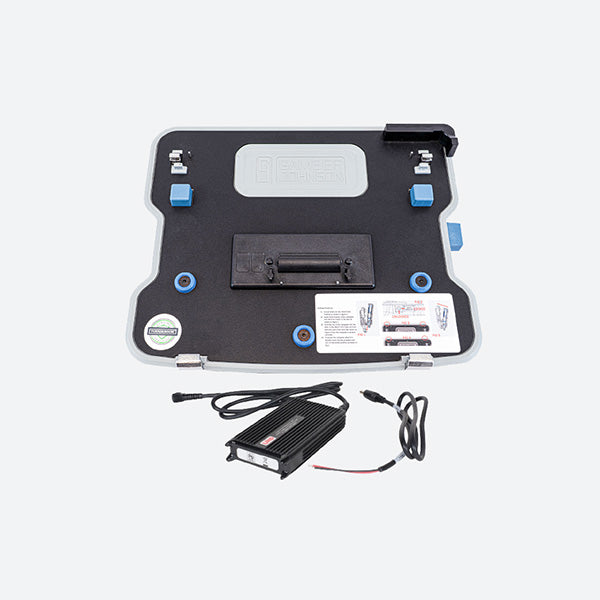

Kit Includes:

  • Panasonic TOUGHBOOK 40 Docking Station; Lite Port; No RF (7160-1728-06)
  • Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic(7300-0461)
  • Mounting Hardware
  • Installation Instructions

7170-0944-00 Specifications

Weight

4.5 lbs / 2.04 kg

Height

2.8 in / 7.11 cm

Width

14.65 in / 37.21 cm

Depth

12.31 in / 31.27 cm

Port Replicators:

Panasonic Certified Electronics
(2) Ethernet; RJ45
(1) Serial; 9-pin
(2) USB-C 3.2 (Max 1.5A@5V)
(1) USB-C 2.0 (500mA) front facing
(1) USB-A 3.2 (900mA) - 9 pin
(2) USB-A 2.0 (500mA) - 4 pin
Power input (15V)


Antenna Pass-through: No RF

$1,089.75 USD
$1,089.75 USD
Shipping calculated at checkout.
