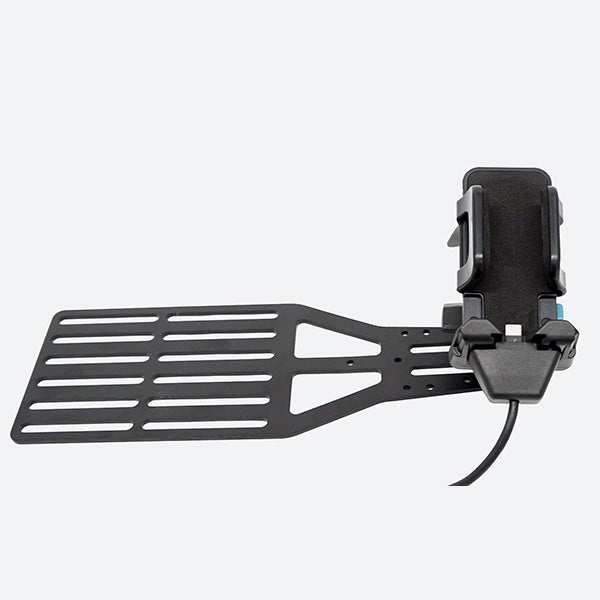

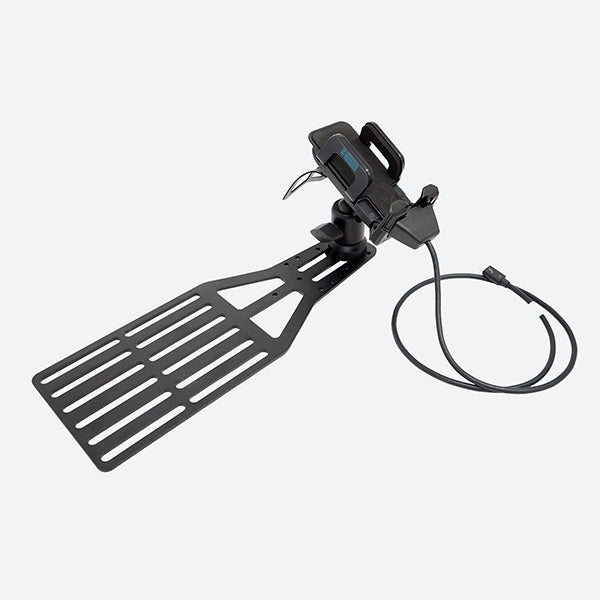

Gamber Johnson Universal Phone Charging and Data Cradle w/ Zirkona Joiner and Mounting Bracket 7170-0951

Gamber Johnson Full Mount 7170-0951

Gamber Johnson Phone Mounting KIT: Universal Phone Charging and Data Cradle with Zirkona Joiner and Mounting Bracket. This kit includes a Universal USB-C Phone Docking Station; Zirkona Heads Up Articulating Mount; Threaded Adapter and Heads Up Mounting Bracket. This Universal Phone cradle provides USB-C charging and data capabilities enabling the phone to be connected to a secondary touchscreen to mirror the screen on the phone.

7170-0951 Features

• Keep your phone or handheld device in clear view for GPS or charging your device.
• Compatible with phones using USB-C charging ports
• USB-C charging and data transfer cable; male to male connector (1.2 meter length)
• Use your phone as a second screen or a touchpad device when you connect to a secondary touchscreen
• Combine your phone cradle with a touchscreen; keyboard; and special mounting equipment to build a complete mobile office solution
• Adjustable charging connector to fit a wide variety of phones
• Phone cradle holds a wide variety of phones and device with up to 3.5" of expanding clamps
• Silicone strap adds additional security for safe mounting in any environment
• 20mm threaded adapter to attach a variety of Zirkona mounting solutions for any application
• Button push release for easy one-handed operation
• Folding legs for added support when needed
• Zirkona Short Joiner can be easily and quickly adjusted for different users to obtain the perfect viewing angle
• Installation guide and mounting hardware included
• Use the Heads Up Mounting Bracket to position your Phone Charging Cradle next to your touch screen for the best view ability

7170-0951 Specifications

Weight

Universal USB-C Phone Charging Cradle 0.3 lbs / 0.14 kg Zirkona Medium 2-Down Joiner with Brake 0.5 lbs / 0.23 kg Zirkona Heads Up Mounting Bracket 0.74 lbs / 0.34 kg Zirkona Female Threaded Adapter 0.1 lbs / 0.05 kg

Height

Universal USB-C Phone Charging Cradle 5.5 in / 13.97 cm Zirkona Medium 2-Down Joiner with Brake 4.5 in / 11.43 cm Zirkona Heads Up Mounting Bracket 0.5 in / 1.27 cm Zirkona Female Threaded Adapter 0.5 in / 1.27 cm

Width

Universal USB-C Phone Charging Cradle 2.6 in / 6.6 cm Zirkona Medium 2-Down Joiner with Brake 3.38 in / 8.59 cm Zirkona Heads Up Mounting Bracket 12 in / 30.48 cm

Depth

Universal USB-C Phone Charging Cradle 2.4 in / 6.1 cm Zirkona Medium 2-Down Joiner with Brake 1.54 in / 3.91 cm Zirkona Heads Up Mounting Bracket 5.75 in / 14.61 cm

Diameter

Zirkona Female Threaded Adapter 1.44 in / 3.66 cm

Compatibility: Compatible with handheld devices and cases that do not exceed 7 Height x 3.5 Width x 0.9 Depth inches in dimensions. Device must have charge and data transfer via USB-C connection.

Maximum Device Size for Cradle:

Height: 7 in / 17.78 cm
Width: 3.5 in / 8.89 cm
Depth: 0.9 in / 2.29 cm
