Gamber-Johnson

Gamber Johnson Panasonic FZ-G1 Lite Port Replication Dock w Dual RF and Power Adapter 7170-0968-02

Gamber Johnson Dock 7170-0968-02

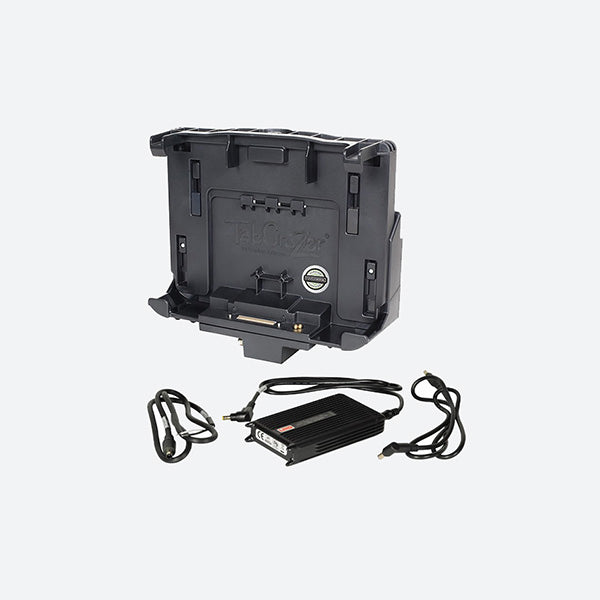

KIT: Panasonic Toughpad FZ-G1 Docking Station with Lite Port replication, Dual RF pass through, VESA hole mounting pattern and with LIND 11-16V Auto Power Adapter with Bare Wire Lead.

7170-0968-02 Features

  • Compatible with the Panasonic Toughpad FZ-G1 and G2 tablet computers with small or large bumper guards
  • Panasonic certified electronics
  • Docking station accommodates the tablet's extended battery; smart card reader; rear hand strap and large bumper guards.
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release; Insert computer into the docking station; push top of dock down and engage lock to dock computer
  • Upward-facing I/O ports; integrated cable strain relief and cable management system
  • Keyed lock for theft deterrence
  • VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • Dual RF TNC

Kit Includes:

  • Panasonic FZ-G1 / G2 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

7170-0968-02 Specifications

Weight

Docking Station: 2.5 lbs / 1.13 kg Power Adapter: 1.22 lbs / 0.55 kg

Height

Docking Station: 9.33 in / 23.7 cm Power Adapter: 1 in / 2.54 cm

Width

Docking Station: 11.22 in / 28.5 cm Power Adapter: 5 in / 12.7 cm

Depth

Docking Station: 2.56 in / 6.5 cm Power Adapter: 3 in / 7.62 cm

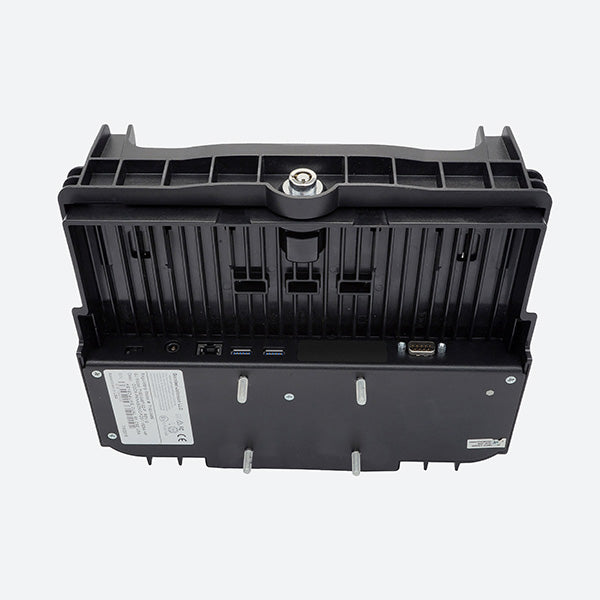

Port Replicators:

Panasonic certified electronics
(1) Ethernet - RJ45
(1) Serial - D-sub 9-pin
(2) USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch


Antenna Pass-through: Dual RF

$801.35 USD
$801.35 USD
Shipping calculated at checkout.
