Gamber Johnson Panasonic FZ-G1 THIN Lite Port Replication Dock w Power Adapter and Dual RF 7170-0969-02
Gamber Johnson Dock 7170-0969-02

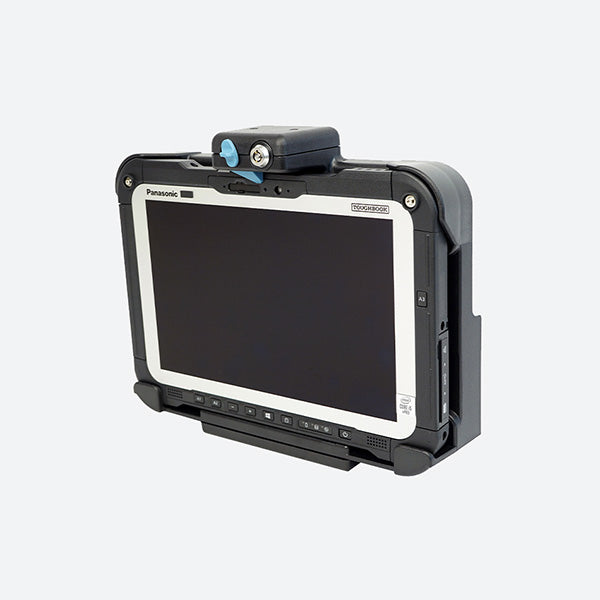

KIT: Panasonic TOUGHpad FZ-G1 THIN Docking Station with Lite Port replication, Dual RF pass through and LIND 11-16V Auto Power Adapter with Bare Wire Lead. Compatible with FZ-G1 TOUGHBOOK without handstrap.
7170-0969-02 Features
- Compatible with the Panasonic TOUGHpad FZ-G1 tablet computers with small bumper guards
- Panasonic certified electronics
- Docking Station is designed to perfectly fit the G1 tablet without extra accessories; thus preserving the existing cabin space within the vehicle
- Access to all tablet control buttons and ports while tablet is docked
- Easy to use one-handed docking and release; Insert bottom of computer into the docking station; push top of computer against latch button to dock computer
- To remove; push up on latch-button with thumb to disengage and pull computer out of the docking station
- Upward-facing I/O ports; integrated cable strain relief and cable management system
- Keyed lock for theft deterrence

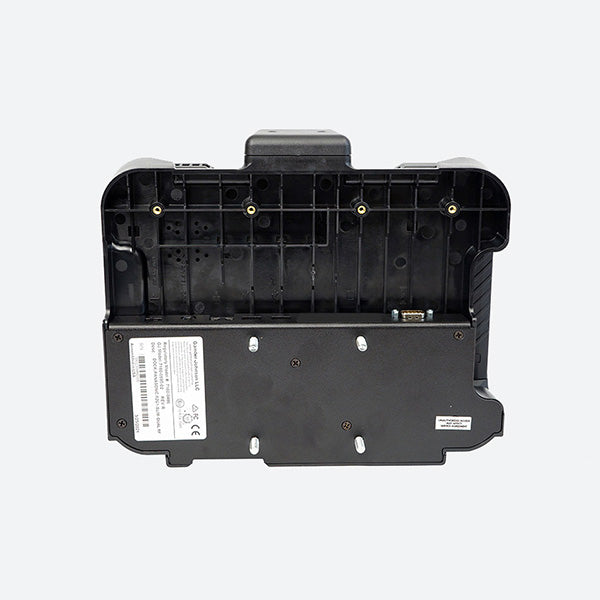

- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- Dual RF TNC

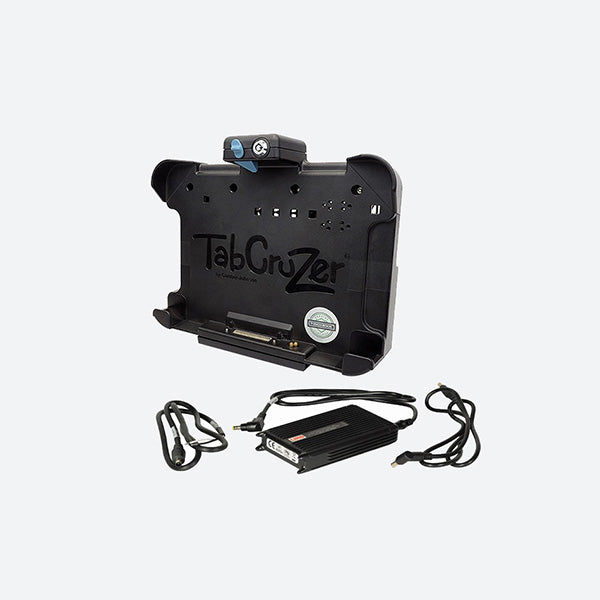

Kit Includes:
- Panasonic FZ-G1 Docking Station
- Mounting Hardware
- LIND 11-16V Auto Power Adapter
- Installation Instructions
7170-0969-02 Specifications
Weight
Docking Station: 2.5 lbs / 1.13 kg Power Adapter: 1.22 lbs / 0.55 kg
Height
Docking Station: 9.33 in / 23.7 cm Power Adapter: 1 in / 2.54 cm
Width
Docking Station: 11.22 in / 28.5 cm Power Adapter: 5 in / 12.7 cm
Depth
Docking Station: 2.56 in / 6.5 cm Power Adapter: 3 in / 7.62 cm
Port Replicators:
Panasonic certified electronics
(1) Ethernet - RJ45
(1) Serial - D-sub 9-pin
(2) USB 3.0 (900mA) - 9 pin
Dual RF Pass-through (optional) - TNC
Power input - 16VDC
Antenna Switch
Antenna Pass-through: Dual RF
