Gamber-Johnson

Gamber Johnson TOUGHBOOK 20/G2 Lite Port Replication Dock, w Power Adapter and Dual RF 7170-0970-02

Gamber Johnson Dock 7170-0970-02

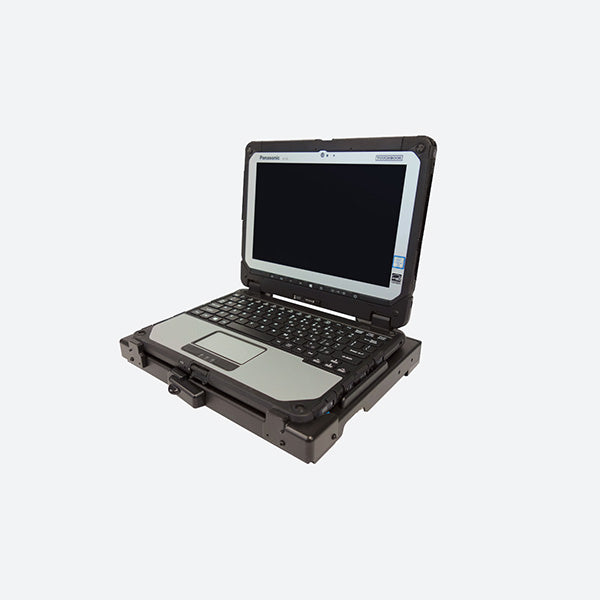

Panasonic TOUGHBOOK 20/G2 Docking Station with LIND 90W Auto Power Adapter, Lite Port, Dual RF. Designed for the Panasonic TOUGHBOOK‚ 20 and G2 tablets with attachable keyboards; position the docking station in laptop or tablet mode. This docking station offers lite port replication; and a keyed lock.

7170-0970-02 Features

  • Compatible with the Panasonic TOUGHBOOK 20 and G2 2-in-1 tablet computers with attachable keyboards
  • Panasonic TOUGHBOOK Certified utilizing Panasonic Certified electronics
  • Spring-loaded cover protects docking connector when computer is not docked; automatically retracts for superior protection
  • Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
  • Can be used in either laptop or tablet orientation.
  • Composite/aluminum design for reduced weight and durability
  • Designed with rounded edges to enhance personal safety
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Access to all notebook control buttons and ports while the notebook is docked
  • Floating docking connector for reliable connectivity in the most rugged environments
  • Keyed lock for theft deterrence
  • VESA 75 mm mounting pattern

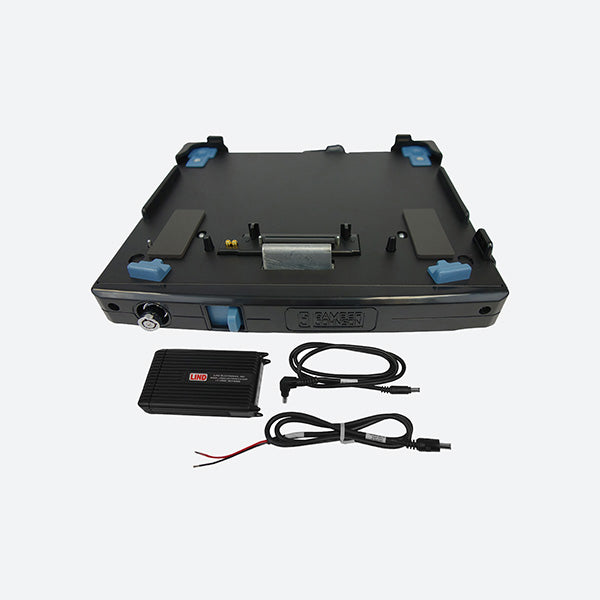

Kit Includes:

  • Panasonic TOUGHBOOK CF-20 and FZ-G2 Docking Station
  • Mounting Hardware
  • LIND 11-16V Auto Power Adapter
  • Installation Instructions

7170-0970-02 Specifications

Weight

Docking Station: 5 lbs / 2.27 kg Power Adapter: 1.22 lbs / 0.55 kg

Height

Docking Station: 2.5 in / 6.35 cm Power Adapter: 1 in / 2.54 cm

Width

Docking Station: 11.6 in / 29.46 cm Power Adapter: 5 in / 12.7 cm

Depth

Docking Station: 12.1 in / 30.73 cm Power Adapter: 3 in / 7.62 cm

Port Replicators:

Panasonic certified electronics
(2) USB 3.0 - 9 pin
(1) Serial - D-sub 9-pin
(1) Ethernet - RJ45
Antenna switch
Dual RF Pass-Through (optional) - TNC
Power supply input - DC 15.6V-16V


Antenna Pass-through: Dual RF

$1,191.12 USD
$1,191.12 USD
Shipping calculated at checkout.
