Gamber Johnson TOUGHBOOK 54/55 Dock with Power Supply and Dual RF 7170-0971-02

Gamber Johnson Dock 7170-0971-02

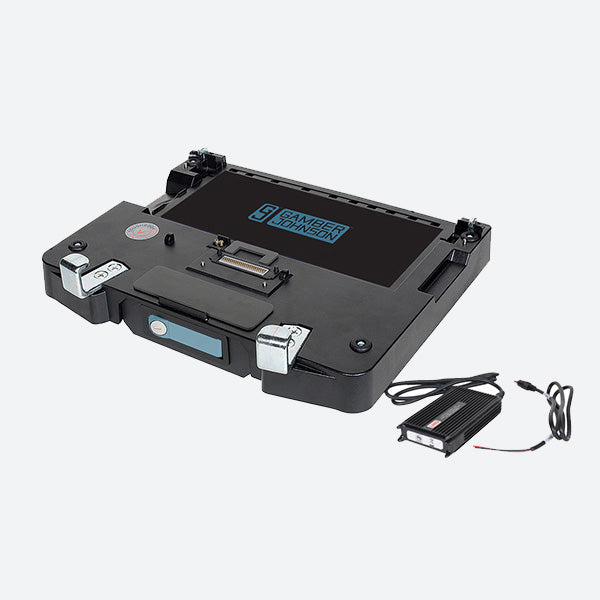

Panasonic TOUGHBOOK CF-54 and FZ-55 Docking Station with LIND 120W Auto Bare Wire Leads Power Supply, lite port replication and dual RF.  Kit includes FZ-55 docking station and 120W auto bare wire leads power supply.

7170-0971-02 Features

• Special docking connector pin protection - helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified
• Rear-facing l/O ports; integrated cable strain relief system; and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:
  • Push the latch to release the docking connector
  • Insert computer and push latch closed to dock computer
• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:
  • Switch set toward outside of dock: Uses exterior antenna
  • Switch set to inside of the dock: Uses laptop antenna
• Dual RF TNC

7170-0971-02 Specifications

Weight

8.50 lbs. / 3.9 kg

Height

3.50 in / 8.9 cm

Width

13.48 in / 34.2 cm

Depth

11.85 in / 31.0 cm

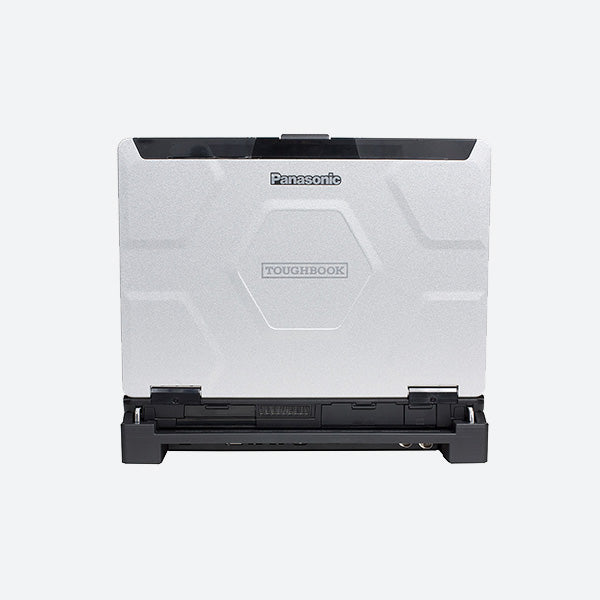

Compatibility: Panasonic TOUGHBOOK CF-54 and FZ-55

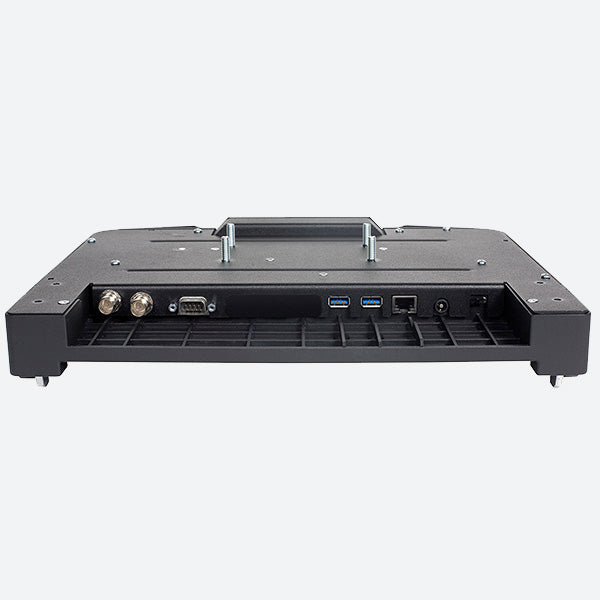

Port Replicators:

Ethernet RJ45
Fully Powered USB 3.0 (2) - 9 pin
Serial D-sub 9 pin
Antenna Pass-Through (2) - TNC
Input Voltage 15.6 V DC
RF Switch

Antenna Pass-through: Dual RF
