Gamber Johnson Getac UX10 Tablet Dock w/ 120W Auto Power Adapter (NO RF) 7170-0995

Gamber Johnson Dock 7170-0995

Getac UX10 Tablet Docking Station with 120W Auto Power Adapter (NO RF.) Gamber-Johnson Getac UX10 docking station (No RF) accommodates the tablet’s rotating hand strap with the extended battery; or the hard handle; RFID reader; and smartcard reader. This docking station features full port replication to connect peripherals; a conveniently located latch button for one-handed docking/release; a keyed lock for extra security; and a VESA 75mm mounting pattern. This kit includes the NO RF docking station and a 120W auto power adapter.

7170-0995 Features

• Compatible with the Getac UX10 tablet computer

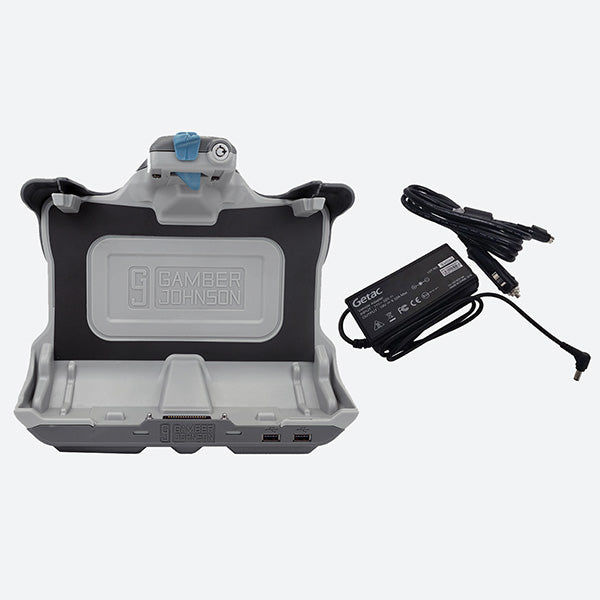

• Kit includes (7160-1813-00) NO RF Docking Station + (17057) Getac 120W Auto Power Adapter Docking station design accommodates the rotating hand strap with the extended battery; or the hard handle; RFID reader; and smartcard reader (sold separately)
• Easy to use one-handed operation: Insert bottom of computer into the docking station; push top of computer against latch button until latch engages
• To remove; push up on latch-button with thumb to disengage and pull computer out of the docking station
• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Downward-facing I/O ports; integrated cable strain relief and cable management system VESA 75mm mounting pattern
• Rounded edges to enhance personal safety

7170-0995 Specifications

Weight

2.15 lbs / 0.97 kg - Dock 0.70 lbs / 0.31 kg - Power Adapter

Height

11.25 in / 28.57 cm

Width

9.87 in / 25.06 cm

Depth

4.5 in / 11.43 cm

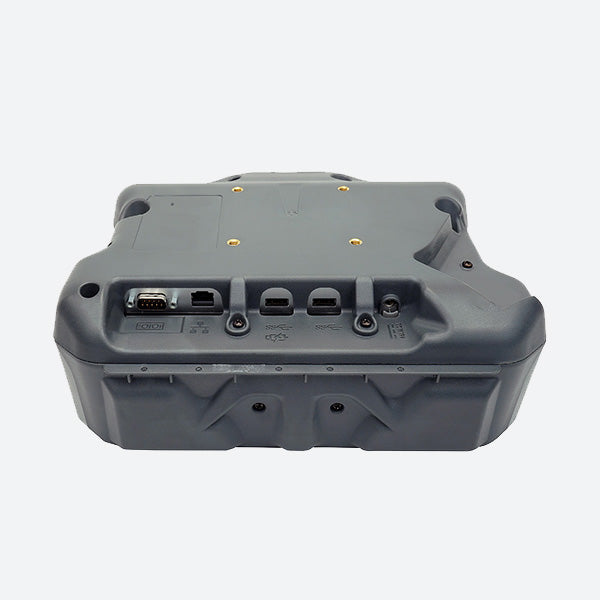

Port Replicators:

Ethernet (1) - RJ45
USB 2.0 (2) - 4 Pin Forward-Facing (500mA)
USB 3.0 (1) - 4 Pin Rear-Facing (900mA) USB 3.0 (1) - 4 pin Rear-Facing; Fast Charging (1500mA)
RS232 Serial (1) - D-Sub 9 Pin Power Input - 19 VDC

Antenna Pass-through: No RF
