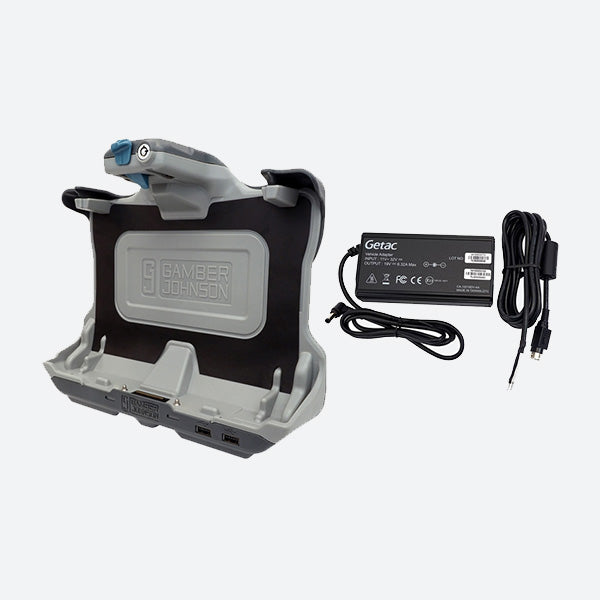

Gamber Johnson Getac UX10 Tablet Dock (NO RF) w/ Getac 120W Auto Power Adapter Bare Wire Lead 7170-0999

Gamber Johnson Dock 7170-0999

Getac UX10 Tablet Docking Station (NO RF) with Getac 120W Auto Power Adapter; Bare Wire Lead. Gamber Johnson Getac UX10 docking station accommodates the tablet’s rotating hand strap with the extended battery; or the hard handle; RFID reader; and smartcard reader. This docking station features full port replication to connect peripherals; a conveniently located latch button for one-handed docking/release; a keyed lock for extra security; and a VESA 75mm mounting pattern.

7170-0999 Features

• Docking station design accommodates the rotating hand strap with the extended battery; or the hard handle; RFID reader; and smartcard reader (sold separately)
• Easy to use one-handed operation:
  • Insert bottom of computer into the docking station; push top of computer against latch button until latch engages
  • To remove; push up on latch-button with thumb to disengage and pull computer out of the docking station
• Access to all tablet control buttons and ports while tablet is docked
• Optional keyed lock for theft deterrence
• Downward-facing I/O ports; integrated cable strain relief and cable management system
• VESA 75mm mounting pattern
• Rounded edges to enhance personal safety

7170-0999 Specifications

Weight

2.15 lbs / 0.97 kg

Height

9.87 in / 25.06 cm

Width

11.25 in / 28.57 cm

Depth

4.5 in / 11.43 cm

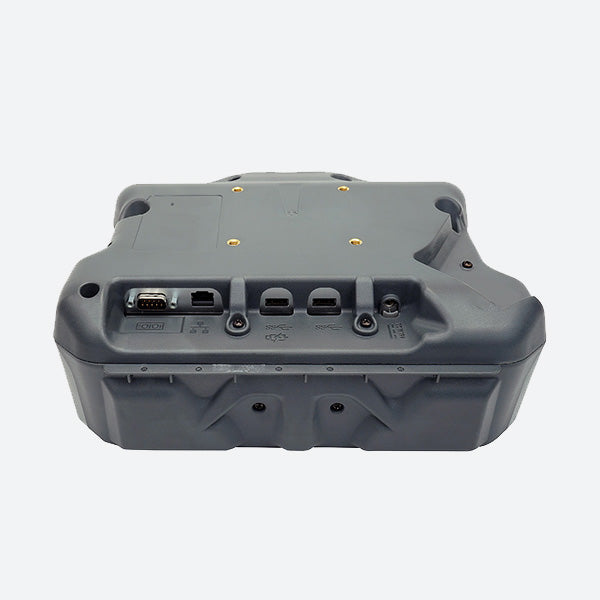

Port Replicators:

Ethernet (1) - RJ45
USB 2.0 (2) - 4 Pin Forward-Facing (500mA)
USB 3.0 (1) - 4 Pin Rear-Facing (900mA)
USB 3.0 (1) - 4 Pin Rear-Facing; Fast Charging (1500mA)
RS232 Serial (1) - D-Sub 9
Pin Power Input - 19 Vdc

Antenna Pass-through: No RF
