Gamber-Johnson

Gamber Johnson Dell Rugged Laptop Dock No RF Full w/ LIND 120W Auto Power Adapter 7170-1090-10

Gamber Johnson Dock 7170-1090-10

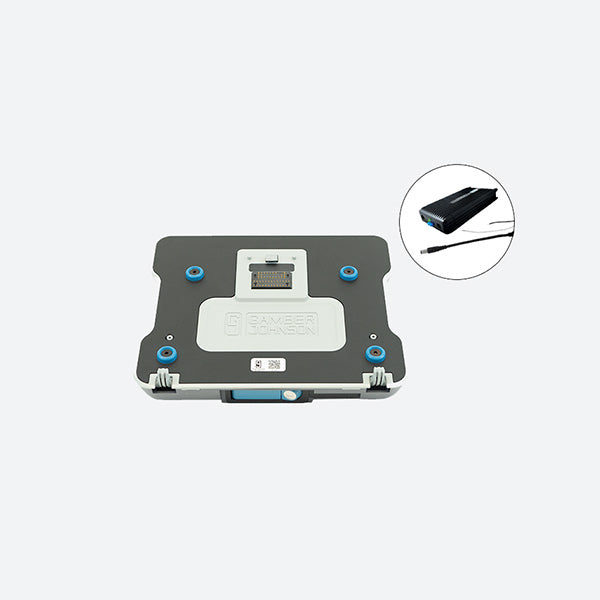

Dell Rugged Laptop Docking Station, No RF, Full Port Replication with LIND 120W Auto Power Adapter. Docking station is adjustable to be compatible with the Dell Latitude 14 Rugged; Latitude 14 Rugged Extreme: and Latitude 12 Rugged Extreme Laptop computers.

7170-1090-10 Features

  • Access to all tablet control buttons and ports while the tablet is docked
  • Adjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computers
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Front-facing docking/release latch
  • Keyed lock for theft deterrence
  • Optional Tri RF (WWAN,WLAN, GPS) TNC
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern
  • Note: Docking Drivers are required for this docking station. Please contact a Rugged or Die sales rep for the correct drivers.

Kit Includes:

  • Dell Rugged Laptop Docking Station; No RF; Full Port Replication (7160-1982-10)
  • LIND 120W Auto Power Adapter with Bare Wire Leads (7300-0714)

7170-1090-10 Specifications

Weight

Dock: 5.6 lbs / 2.5 kg Power Supply: 0.85 lbs / 0.39 kg

Height

Dock: 2.36 in / 6.0 cm Power Supply: 1.1 in / 2.79 cm

Width

Dock: Hooks expand from 10.7 in - 12.85 in / 27.2 cm - 32.6 cm Power Supply: 3.1 in / 7.87 cm

Depth

Dock: 12.13 in / 30.8 cm Power Supply: 5.35 in / 13.59 cm

Port Replicators:

(1) Ethernet, RJ45
(1) HDMI
(1) Serial, D-sub 9-pin
(1) USB-A 2.0
(1) USB-C 3.0
(2) USB-A 3.0
Power input, 19VDC
Tri RF Pass-through (optional), TNC


Antenna Pass-through: No RF

Model Compatibility:

12 Rugged Extreme Laptop (7204/7214)
13 Pro Rugged Laptop (RA13250)
14 Pro Rugged Laptop (RB14250)
14 Rugged Extreme Laptop (7330)
14 Rugged Extreme Laptop (7404/7414/7424/7330)
14 Rugged Laptop (5404/5414/5420/5424/5430)
