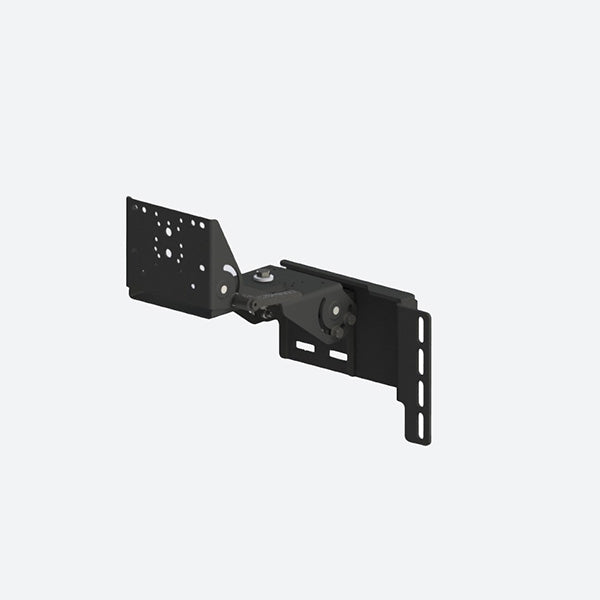

Gamber Johnson Toyota and Raymond Reach Truck Cab Overhead Guard Mount 7170-1102

Gamber Johnson Full Mount 7170-1102

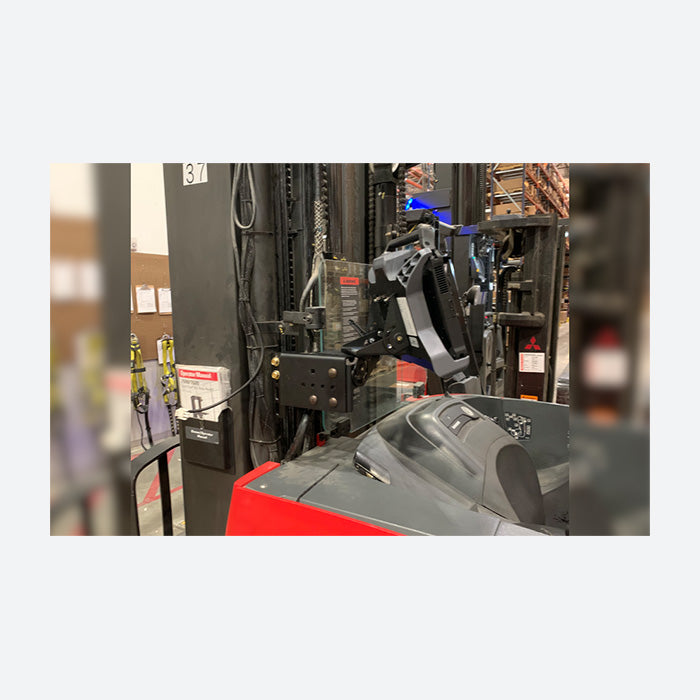

This Gamber Johnson mount is designed for Toyota or Raymond Reach Trucks. The slotted attachment spaces allow for the mount to be attached to the Overhead Guard Leg utilizing M10 hex bolts on the vehicle. The slotted attachment spaces allow for additional flexibility in positioning. Mount any device securely to the forklift overhead guard legs.

7170-1102 Features

• Designed to attach to the Overhead Guard leg in existing holes
• Adjusts to vertical positioning with various slotted holes
• Clam Shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09"
• The entire arm can rotate around 360° and the Motion Attachment can also rotate 360°
• Arm can be tightened down to be locked into a permanent position
• A secondary bolt is included to lock the clevis into a permanent position
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powder coat finish for maximum corrosion resistance

7170-1102 Specifications

Weight

16 lbs / 7.26 kg

Height

4 in / 10.16 cm

Width

7 in / 17.78 cm

Depth

13 in / 33.02 cm
