Gamber-Johnson

Gamber Johnson Getac ZX10 Vehicle Dock w/ Getac 65W Auto Power Adapter (No RF) 7170-1170-00

Gamber Johnson Dock 7170-1170-00

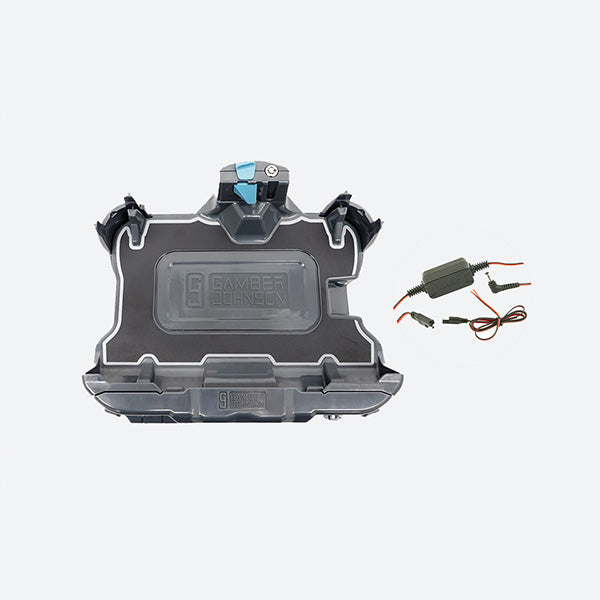

Getac ZX10 Vehicle Docking Station with Getac 65W Auto Power Adapter with Bare Wire Lead (No RF.) Getac ZX10 vehicle docking station (No RF) with full-powered dual USB ports; microphone and speaker/headphone ports; easy one-hand docking/release; a keyed lock; and VESA 75mm mounting pattern to mount to a variety of Gamber-Johnson mounting equipment. Kit includes Getac auto power adapter with bare wire lead.

7170-1170-00 Features

  • Getac certified electronics

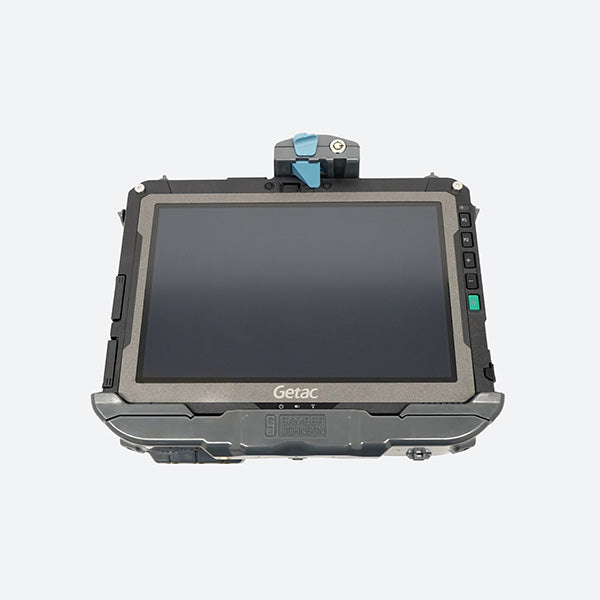

  • Compatible with the Getac ZX10 tablet
  • Docking station accommodates the tablet's card reader; extended battery; hand strap; stylus; barcode reader; and hard carry handle
  • Access to all tablet control buttons and ports while the tablet is docked
  • Docking connector gasket provides additional water resistance and protection.
  • Downward-facing I/O ports; integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

Kit Includes:

  • Getac ZX10 Docking Station
  • Getac 65W Automotive Power Adapter with Bare Wire Leads
  • Mounting Hardware
  • Installation Instructions

7170-1170-00 Specifications

Weight

Docking Station: 2.6 lbs / 1.18 kg Power Adapter: 0.7 lbs / 0.32 kg

Height

Docking Station: 9.89 in / 25.12 cm Power Adapter: 5.1 in / 12.95 cm

Width

Docking Station: 11.49 in / 29.18 cm Power Adapter: 2.6 in / 6.6 cm

Depth

Docking Station: 4.15 in / 10.54 cm Power Adapter: 1.2 in / 3.05 cm

Port Replicators:

Getac certified electronics
(2) Full Powered USB 2.0 (1.5A Output) - 4 pin
Power input - 19 VDC
(1 each) Headphone / Microphone
Tri RF Pass-through (optional)


Antenna Pass-through:

No RF

$438.03 USD
$438.03 USD
Shipping calculated at checkout.
