Gamber Johnson TrimLine TOUGHBOOK CF-20 Laptop Vehicle Dock Dual RF TNC 7300-0191-02

Gamber Johnson Dock 7300-0191-02

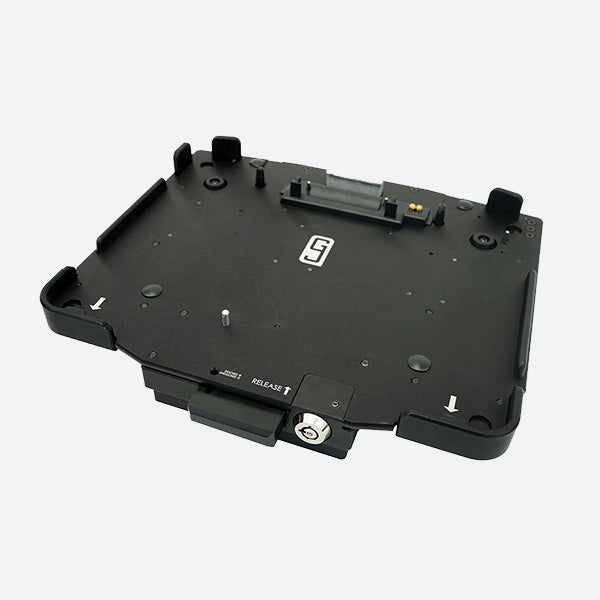

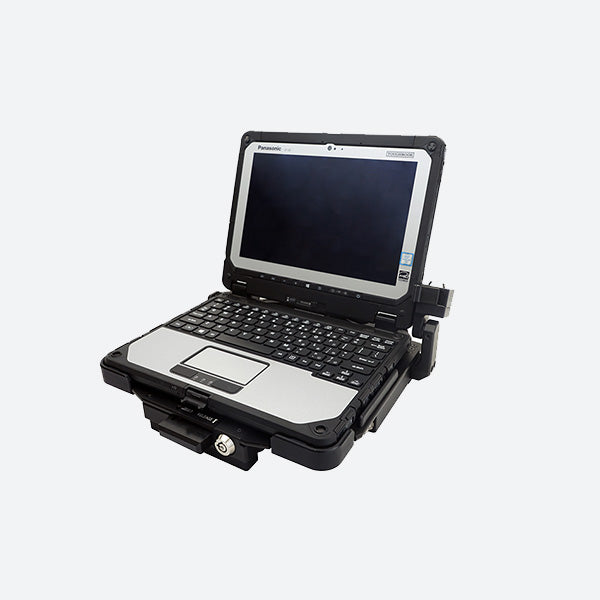

TrimLine Panasonic TOUGHBOOK CF-20 Laptop Vehicle Docking Station with Dual RF pass through (TNC connection.) This dock features full port replication, a one-hand dock and release, and a keyed lock.

Gamber Johnson PMT branded products are manufactured in and shipped from Canada. Effective March 4, 2025 - due to tariffs - all products shipping to the U.S. may be subject to a Gamber Johnson logistics surcharge.  Please contact a ROD sales rep prior to purchase to determine surcharge amount.

7300-0191-02 Features

  • Space saving and ergonomic design improves safety and comfort
  • CNC machined aluminum construction for rugged reliability
  • Top mounted USB ports allow compatibility with Clam Shell mounts
  • Floating protected docking connector for years of reliable connectivity
  • Patent pending optional screen lock/support arm prevents theft and reduces device wear and tear. Note: The optional Screen Lock Arm will secure the tablet on the TOUGHBOOK 20; however; this Arm is not compatible with the TOUGHBOOK G2.
  • Forward facing release and locking mechanism for easy one handed operation
  • Integrated cable strain relief
  • Key locking mechanism for device security
  • Available with or without dual RF pass-through
  • Available with power indicator light when purchased with PSU
  • VESA 75mm mounting pattern

Kit Includes:

  • TrimLine Panasonic TOUGHBOOK 20 Docking Station
  • Mounting Hardware
  • Installation Instructions

7300-0191-02 Specifications

Weight

5.2 lbs / 2.35 kg

Height

2.2 in / 5.6 cm

Width

14.6 in / 37.0 cm

Depth

10.1 in / 25.6 cm

Port Replicators:

USB 3.0 (2)
Serial (1)
HDMI (1)
VGA (1)
Ethernet (1)
Power Input 16VDC


Antenna Pass-through:

Dual RF

$1,252.75 USD
$1,252.75 USD
Shipping calculated at checkout.
