Gamber Johnson Dell LIND Power Supply DE2045i-3263 12-32 VDC Power Adapter 7300-0305

Gamber Johnson Power Adapter 7300-0305

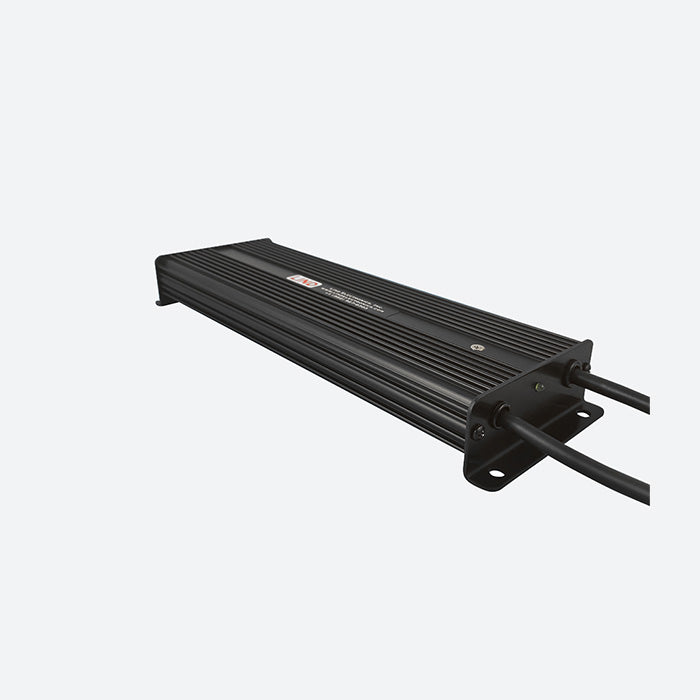

Dell LIND Power Supply, DE2045i-3263 12-32 VDC Isolated DC/DC Power Adapter. The LIND 12-32 VDC Isolated DC/DC Power Adapter is designed to power your Dell-compatible computer. The adapter incorporates the highest degree of circuit protection for your device and the adapter itself.

7300-0305 Features

• Electrical isolation prevents ground loops
• Rugged aluminum housing
• Flanged end plates for easy mounting
• Low/High Input Voltage Disconnect
• LED flash rate identifies fault
• Output Short Circuit Protection
• Output Over-current Protection
• Internal Over Temperature Protection
• Automatic Restart 10 seconds after Fault Removal
• LED Output Power Present Indicator
• Reverse polarity disconnect

7300-0305 Specifications

Input Voltage Range: 12 to 32 VDC
Output Voltage: 12 VDC
Output Power: Up to 90W500 VDC Input/Output Isolation (output tied to chassis)
Operating Temperature: -20° to +40° C
Storage Temperature: -40° to +85° C
Enclosure: Extruded Aluminum
Weight: 1.25 pounds excluding cables
Dimensions: 9.3 x 3.0 x 1.15 inches excluding cables
Mounting Hole Size: .20 inch
