Gamber-Johnson

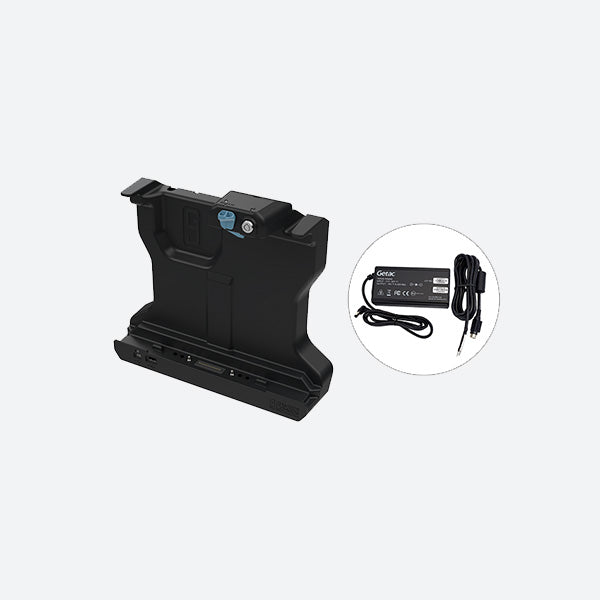

Gamber Johnson F120 Getac Tablet Dock with Full Port Replication, Quad RF and 120w Bare Wire Auto Adapter 7170-1225-04

Gamber Johnson Dock 7170-1225-04

Specifically built for the rugged Getac F120 tablet, the Gamber Johnson 7170-1225-04 vehicle dock can match the computer for durability and functionality. Featuring MIL-STD 810G testing certification, the 7170-1225-04 dock is able to withstand vibration, heat and cold extremes while protecting the F120 from damage and wear and tear. Featuring a locking latch mechanism, this keyed dock is a great theft deterrent protecting the expensive asset from loss. This Gamber Johnson dock kit includes a special dock configuration which includes quad RF pass through to allow for external antennas to be installed for the ultimate boost to internal radio signals such as 4G LTE, GPS or WiFi. This kit also includes a 120W Bare Wire auto power adapter.

7170-1225-04 Features

  • Compatible with the Getac F120 tablet
  • Getac certified electronics
  • One-hand docking and release for efficient use

  • Accommodates the tablet’s hard handle, high-capacity battery, smart card reader and slim hand strap accessories

  • Allows access to all tablet control buttons while the tablet is docked

  • Downward facing rear ports with integrated cable management
  • Floating docking connector ensures reliable pogo pin connection in rugged environments
  • Built-in stylus holder
  • Keyed lock for security
  • VESA 75 mounting pattern

    7170-1225-04 Specifications

    • Weight

      2.3 lbs / 1.04 kg

    • Height

      12.5 in / 31.75 cm

    • Width

      10.45 in / 26.54 cm

    • Depth

      2.88 in / 7.32 cm

      Warranty:

      • 3 Year Limited Warranty
      • Extended Warranty/Gamber Guard Options Available



      Model:

      • F120



      Power Supply:

      • Includes Getac 120W Power Adapter with Bare Wire Lead (7300-0516)



      Testing Specifications:

      • Vibration Tested: MIL-STD 810G Operational/Non-Operational
      • Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
      • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
      • FCC, RoHS Certified
      • E-Mark
      • SAE Standard J1455 Crash Test



      Port Replicators:

      • (1) USB-A 2.0 (front)
      • (1) USB-C 2.0 (front)
      • (2) USB-A 3.2
      • (1) USB-C 3.2
      • (1) RJ45
      • (1) RS232 (5V powered on pin 9)
      • (1) HDMI
      • Power Input: 19 Vdc
      • QUAD SMA RF Pass-through



      Antenna Pass-through:

      • Quad RF






    $750.00 USD
    $750.00 USD
    Shipping calculated at checkout.
