Gamber Johnson Getac V120 Dock With Advanced Port Replication and Bare Wire Power Supply 7170-1222-00

Gamber Johnson Dock 7170-1222-00

Gamber Johnson produces some of the best computer vehicle docking stations and cradles in the industry. Renowned for quality materials and design, Gamber Johnson has purpose built docks for virtually all rugged computers and tablets. The 7170-1222-00 is designed for the new Getac V120 rugged computer. Featuring a rotating screen, the V120 has replaced the popular V110 laptop. The 7170-1222-00 is a great way to safely dock the V120 and is built to attach easily to numerous vehicle mounting solution. Featuring a locking latch for theft deterrence as well as advanced port replication (includes HDMI as well as USB-A, USB-C, RJ45 and RS232), the 7170-1222-00 saves wear and tear on the V120 ports and can quickly connect it to external peripherals. The 7170-1222-00 does not include the optional Quad RF pass through and can't have external antennas connected to boost the internal signals of the V120; if that feature is needed please consider alternative part number 7170-1220-04

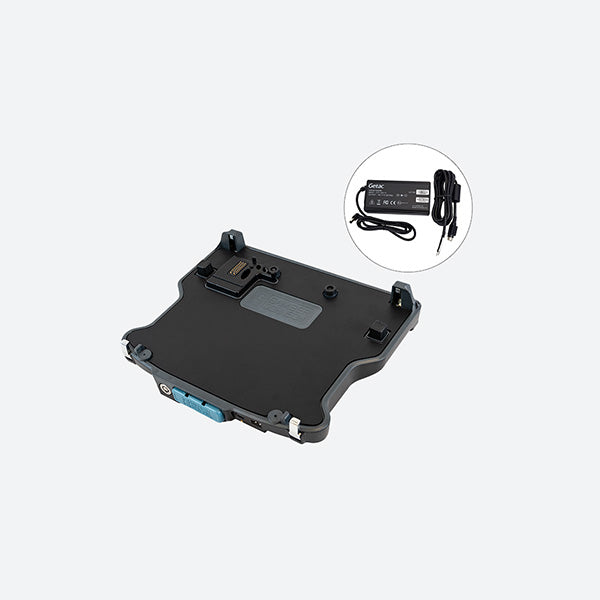

This kit includes a bare wire power supply.

Interested in the 7170-1222-00 or need help creating a complete vehicle mounting solution for your V120? Give our sales team a call for a free consultation and quote at 816-388-0035

7170-1220-00 Features

• Compatible with Getac V120 2-in-1 convertible computer
• Allows for docking in laptop or tablet mode
• Autodocking design for easy docking
• Floating docking connector ensures reliable pogo pin connection in rugged environments
• Built-in stylus holder
• Keyed lock for security
• Full and Lite port replication options to align setup to peripheral and budget requirements
• DOES NOT INCLUDE RF PASS THROUGH
• VESA 75 mounting pattern

Kit Includes:

7170-1220-00 Specifications

Weight

3.31 lbs / 1.5 kg

Height

1.78 in / 4.52 cm

Width

12.5 in / 31.75 cm

Depth

10.44 in / 26.52 cm

• Warranty:

  • 3 Year Limited Warranty
  • Extended Warranty/Gamber Guard Options Available

• Power Supply:

  • Included: Getac 120W Power Adapter w/ Cig Plug (7300-0516)


• Testing Specifications:

  • Getac Certified
  • Vibration Tested: MIL-STD 810H Operational/Non-Operational
  • Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
  • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
  • FCC, RoHS Certified
  • E-Mark
  • SAE Standard J1455 Crash Test

• Port Replicators:

  • (1) USB-A 2.0 (front)
  • (1) USB-C 2.0 (front)
  • (2) USB-A 3.2
  • (1) USB-C 3.2
  • (1) RJ45
  • (1) RS232 (5V powered on pin 9)
  • (1) HDMI
  • Power Input: 19 Vdc
  • QUAD SMA RF Pass-through (optional)

• Antenna Pass-through:

  • Quad RF

• Device Type:

  • Laptop

• Industry:

  • Fire/Rescue
  • Logistics
  • Material Handling
  • Public Safety
  • Utility

• Port Replication:

  • Full

• Brand:

  • Gamber-Johnson

• Sub Type 1:

  • Dock

• Notes:

  Default ANT for RF Pass-through:

  • A: GPS
  • B: WLAN or WWAN Aux
  • C: WWAN Main
  • D: WWAN MIMO
