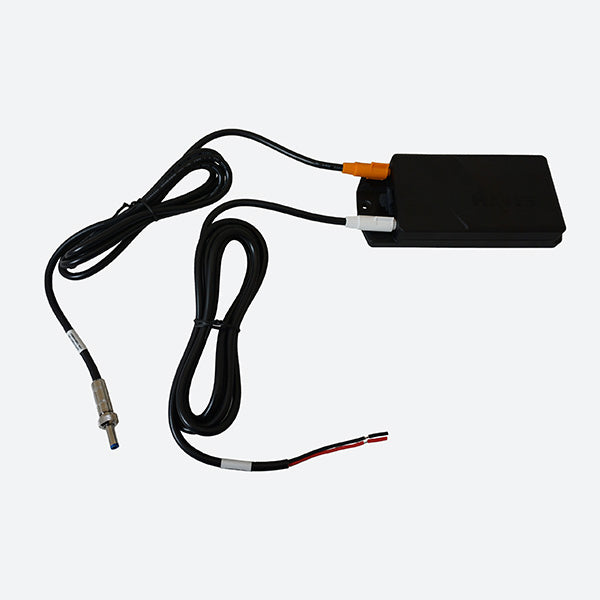

Havis 120W DC Power Supply For Use With Dell Compatible Havis Docking Station, With Straight Threaded Connector 120N-A01-T01-1

Havis Power Supply 120N-A01-T01-1

The Havis OEM power adapter 120N-A01-T01-1 is intended to power a number of different Dell rugged laptop docking stations. Providing a hard wire adapter power input and a straight threaded power output cable, the 120N-A01-T01-1 provides fast charging to rugged tablets. The threaded power connector on the 120N-A01-T01-1 can only plug into compatible Havis docking stations and is unable to plug directly into the tablet.

120N-A01-T01-1 Features

• 120W DC Power Supply
• Compatible Havis Docks: DS-DELL-430, DS-DELL-900, & DS-DELL-1100 Series

• Compatible computers: Dell Rugged (when docked)

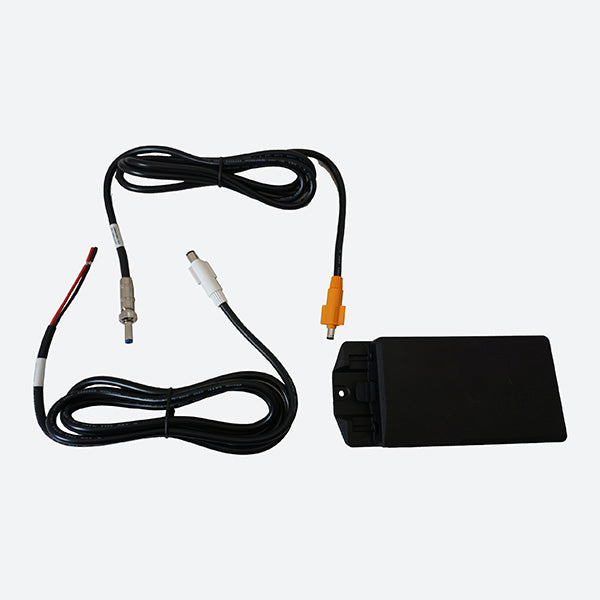

• Power supply includes: detachable 72" output power cable with straight threaded connector, detachable 72" Bare-Wire Input Cable
  Twist-to-Lock DC Power Connectors, LED Power Indicator, Covered Fuse, and Integrated Mounting

120N-A01-T01-1 Specifications

Watts:    120
Voltage:    12-16 VIN, 19.5V Output

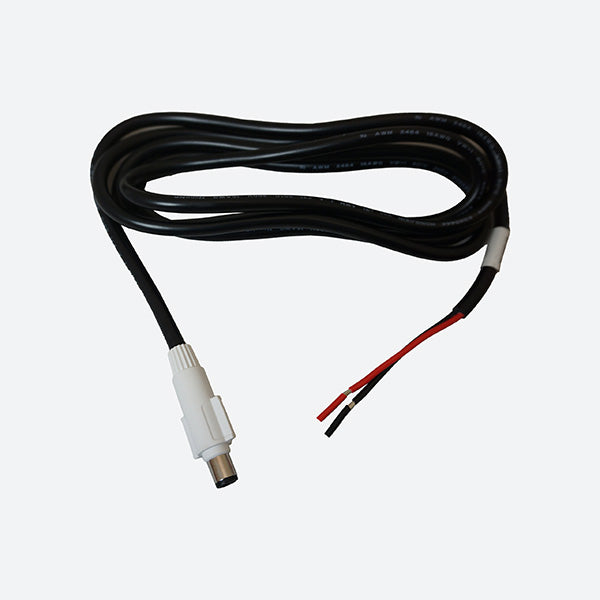

Input cable:    72" long Bare-Wire, 16awg

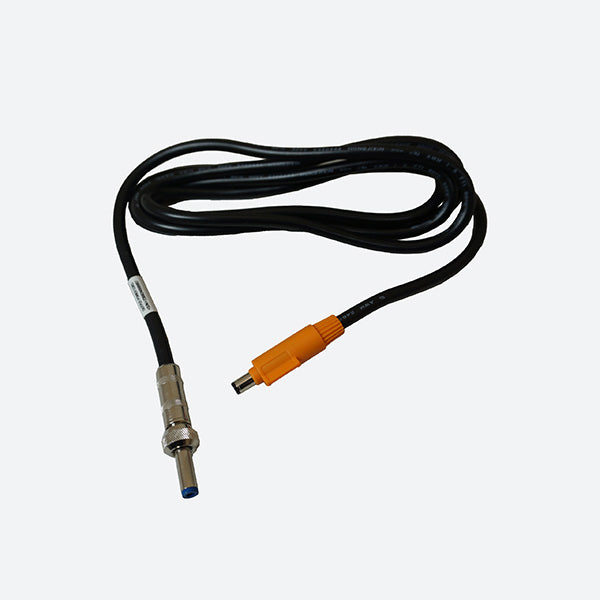

Output cable:    72" long with straight threaded connector
Output current:    up to 6.0 AMPS
Product dimensions:    1.10” (2.79 cm) H x 2.99” (7.60 cm) W x 6.70” (17.0 cm) D
Efficiency:    >89%
Input Current:    Up to 15A
Output Voltage Ripple:    250mV pk-pk (max)
Operating Environment:    -30C to 48C, 95% RH
Product weight:    0.6 lbs.
Gross weight:    0.75 lbs
