Havis 120W DC Power Supply with a straight Panasonic connector 120N-B01-S03-1

Havis Power Supply 120N-B01-S03-1

Havis Power Supply for use with Panasonic DS-PAN-430 Series Docking Stations

Intended to power the Havis docking stations for most Panasonic TOUGHBOOK rugged laptops and rugged tablets. Designed for 12-16 VIN DC Input, the 120N-B01-S03-1 has been calibrated for 15.6 V output. With a hard wired input cable and a straight connector output cable.

120N-B01-S03-1 Features

• 120W DC Power Supply
• Compatible Havis Docks: DS-PAN-113, DS-PAN-213, DS-PAN-300, DS-PAN-430, DS-PAN-900, DS-PAN-1010, and DS-PAN-1400 Series

• Compatible computers: ALL Panasonic Toughbook

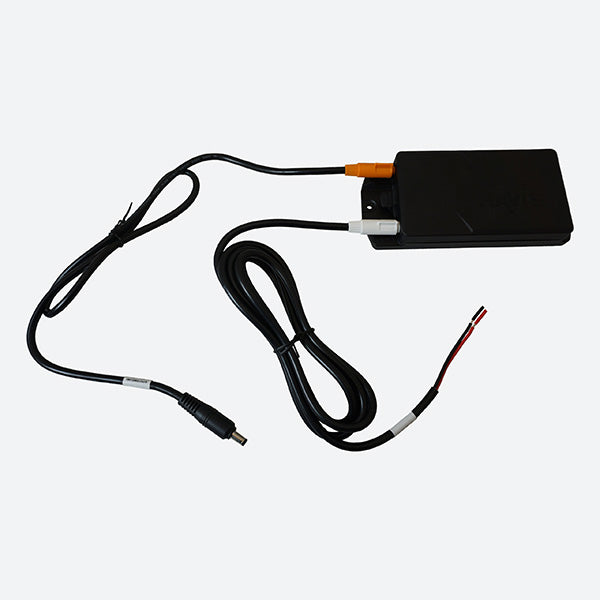

• Power supply includes detachable 36" output power cable with straight Panasonic connector, detachable 72"Bare-Wire Input Cable
  Twist-to-Lock DC Power Connectors, LED Power Indicator, Covered Fuse, and Integrated Mounting

120N-B01-S03-1 Specifications

Compatible with the following Panasonic Toughbooks devices:    ALL Panasonic TOUGHBOOK
Watts:    120
Voltage:    12-16 VIN DC, 15.6V output
Input cable:    72" long Bare-Wire, 16awg
Output cable:    36" long with straight Panasonic connector
Output current:    up to 7.75 AMPS
Product Dimensions    1.10” (2.79 cm) H x 2.99” (7.60 cm) W x 6.70” (17.0 cm) D
Gross weight:    0.75 lbs
