Havis Heavy-Duty Mount for 2011-2016 Ford F-Super Duty Series & 2011-2024 F-650, F-750 Chassis Cab C-HDM-142

Havis Vehicle Base C-HDM-142

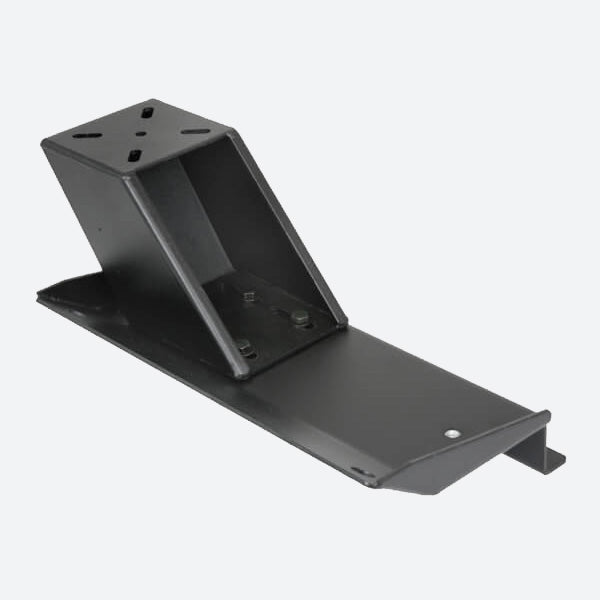

Compatible with a large range of Ford vehicles (see specifications tab for full compatibility list) the Havis C-HDM-142 Vehicle Base is made out of heavily rugged materials. Welded heavy gauge steel that is then powder coat finished allows the C-HDM-142 to function as a sturdy base for a Havis rugged computer mount. Attaching to the OEM seat bolts, the C-HDM-142 can install into the Ford vehicle without the need for drilling. Rugged or Die is a premiere sales company that offers the full Havis brand of equipment as well as Panasonic TOUGHBOOK and Getac rugged computers. If you would like a from-the-ground up solution including the C-HDM-142 base to the rugged computer and every required piece of equipment in between, send us an email to sales@ruggedordie.com with your needs and we will return a quote within one business day.

C-HDM-142 Features

• Heavy-duty base for pedestal mounts

• Mounts independently of console to OEM seat bolts
• Gusseted and welded heavy gauge steel
• Black powder coat finish
• Lifetime warranty
• Made in USA
• Includes:
• HDM base plate and offset angle bracket
• Mounting hardware: 1 1/2" spacers (2), flat washers (6), lock washers (4), 5/16-18 x 3/4" (4), 12mm-1.175 x 75mm (2)
• For a complete solution:
• 8.5" Heavy-duty telescoping pole, short handle: C-HDM-202
• Heavy-duty side support arm: C-HDM-401
• 11" slide out locking swing arm with motion adaptor: C-MD-112

C-HDM-142 Specifications

Dimensions:    17.40" (44.2 cm) x 9.11" (23.1 cm) x 6.89" (17.5 cm)
Gross weight:    8 lbs

Compatible with:

• Ford 2008-2010 F-250, F-350, F-450, and F-550, F-650, F-750 Chassis Cab,
• Ford 2011-2016 F-250, F-350, F-450, and F-350, F-450, F-550 Chassis Cab,
• Ford 2011-2023 F-650, F-750 Chassis Cab
