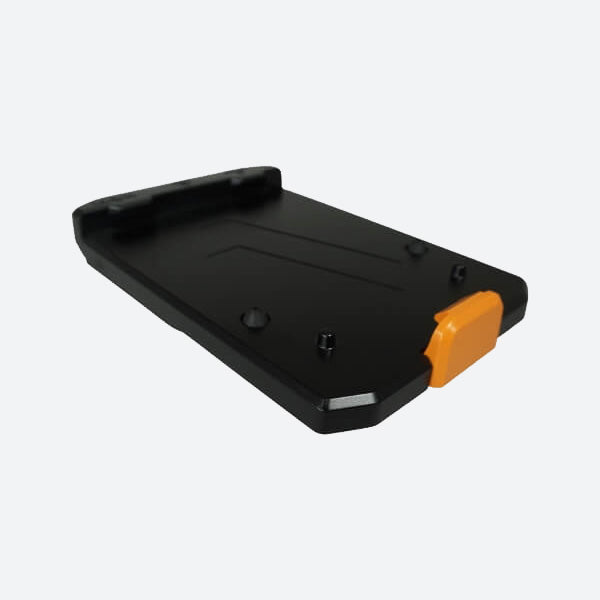

Havis Rugged Keyboard Mount C-KBM-201

Havis Keyboard Mount C-KBM-201

The patented C-KBM-201 Havis Rugged Keyboard Mount offers versatile mounting options to a number of keyboard form factors. Featuring a VESA 75mm mounting pattern, the keyboard mount mounts one plate to the keyboard and the other to the mounting solution. With the front access trigger, the quick release function allows the keyboard to be quickly installed and removed.

C-KBM-201 Features

• Patented Havis Rugged keyboard mount
• Designed to mount Havis rugged USB backlit keyboards
• Front-access trigger permits easy fore/aft adjustment within a range of 3.875"
• Easily remove the keyboard using our unique quick-release push button
• Made of high performance PC-ABS thermoplastics resulting in outstanding strength, heat resistance, feature definition, and surface finish
• Primary mounting plate is glass fiber polymer reinforced for extra durability

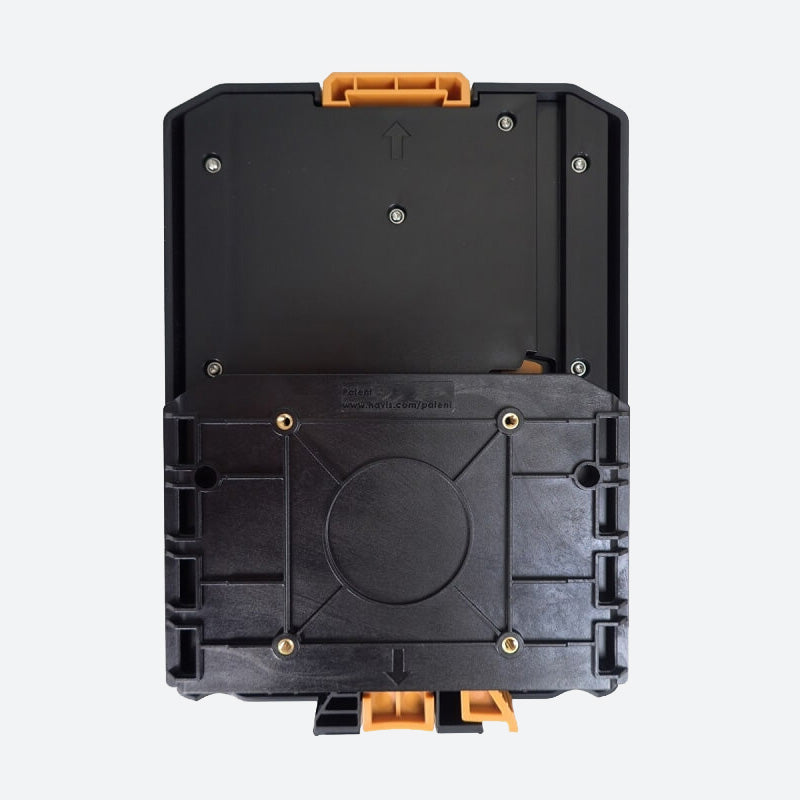

• Mounting: VESA 75 at bottom of keyboard mount
• Use C-ADP-112 if mounting to flex arm mount

C-KBM-201 Specifications

Dimensions:    9.2" ( 23.4 cm) h x 6.4" ( 16.3 cm ) w x 1.4" ( 3.6 cm ) d
Testing:    Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, environmental testing: hot/cold operational & storage
Product weight:    1.0 lbs. (0.45 kg)
Gross weight:    2 lbs
