Havis Cradle for Getac V120 with Screen Support PKG-DS-GTC-1603

Havis Cradle PKG-DS-GTC-1603

Havis purpose built docks and cradles are a great way to safely secure computers in a vehicle mount. Ready to be installed on a number of Havis mounting options, Havis vehicle cradles provide keyed latching for added theft deterrence. Able to safely secure the Getac V120 while the vehicle is in operation, a Havis vehicle cradle is a necessary part of a computer mounting solution. Though a Havis cradle is cheaper than a dock, it does not provide any power or port replication to the V120 (if these features are required, please consider a Havis V120 dock.)

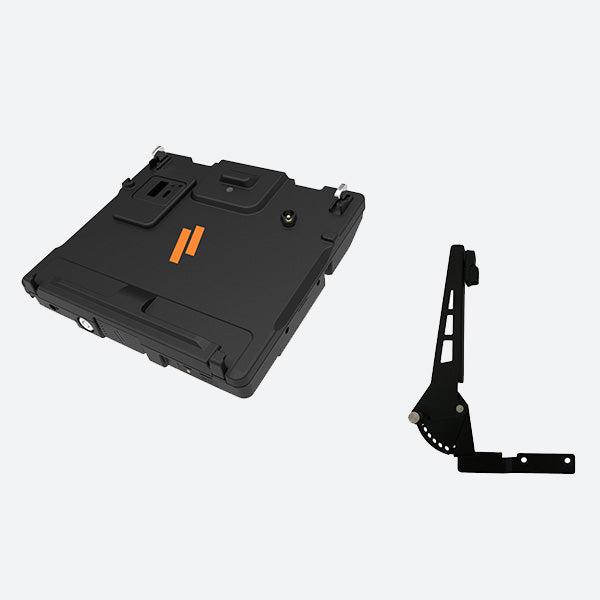

PKG-DS-GTC-1603 Kit includes screen support to minimize vibration on the Getac V120

If you are needing assistance developing a vehicle mounting solution for your Getac V120, please give our knowledgeable vehicle computer mounting experts a call at 816-388-0035

PKG-DS-GTC-1603 Features

• • Supports Getac's V120 laptops in the Public Sector, Utility Services, Defense, Material Handling, and other demanding environments
  • Cradle offers safe and secure stowage of a laptop
  • Includes DS-DA-424 Screen Support, designed to support the laptop screen and reduce vibration
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Compact & lightweight while being ultra rugged
  • Lock and key supplied for peace of mind theft deterrence
  • Integrated cable management system
  • Designed to fit all Havis and VESA 75-hole pattern mounting equipment, as well as most competitors
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Made in USA



PKG-DS-GTC-1603 Specifications

Compatible computer:    Getac V120
Dimensions:    11.8" (300mm) H x 11.1” (282 mm) W x 3.1” (77 mm) D
Certifications:
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30mph
Bump Testing: IEC-68-2006-27
Cycle Testing: Dock/undock 30K cycles
Environmental Testing: Hot/Cold operational -31° C to 63° C (-23.8° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Thermal Shock: MIL-STD 810H, Method 503.7
FCC, CE, CAN ICES (B), RoHS
EMC Testing: EN 55032, EN 50498
ESD: IEC 10605

Product weight:    4.4 lbs.
Gross weight:    5.75 lbs
