Havis Cradle for Panasonic TOUGHBOOK 33 NO Port Replication or Power DS-PAN-1213

Havis Dock DS-PAN-1213

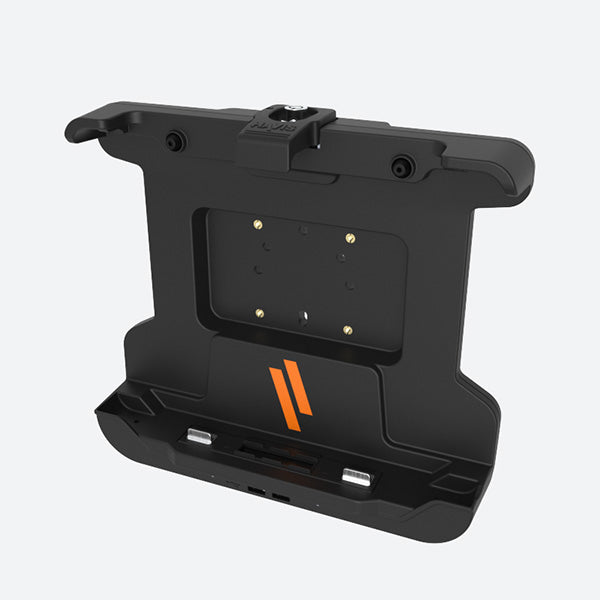

The Havis DS-PAN-1213 Cradle is a great way to secure the CF-33 Panasonic TOUGHBOOK in a vehicle safely. Built to be mounted to a number of vehicle mounting solutions, the DS-PAN-1213 comes with a keyed lock for added theft deterrence. Compatible with the CF-33 in tablet only mode (no keyboard) the DS-PAN-1213 is also able to secure a CF-33 with the optional 5G module. The DS-PAN-1213 does not provide any power, port or antenna pass through, if any of those features are needed please call our sales team at 816-388-0035 for a free consultation into what vehicle dock is right for your needs!

DS-PAN-1213 Features

• Supports Panasonic's TOUGHBOOK 33 and TOUGHBOOK 33 5G Tablets in Material Handling, Utility Services, Waste Management and other demanding environments
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• One-handed docking & undocking
• Compact & lightweight while being ultra rugged
• Lock and key supplied for peace of mind theft deterrence
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Made in USA


DS-PAN-1213 Specifications

• Compatible computer:    Panasonic TOUGHBOOK 33 and TOUGHBOOK 33 with 5G


• Certifications:


• Vibration Testing: MIL-STD 810H 514.8


• Crash Testing: SAE J1455 30mph


• Cycle Testing: Dock/undock 30K cycles


• Environmental Testing: Hot/Cold operational -10° C to 50° C (14° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)


• Thermal Shock: MIL-STD 810H, Method 503.7
  FCC, CE, CAN ICES (B), RoHS
  EMC Testing: EN 55032, EN 50498


• ESD: IEC 10605



• Product Dimensions:    11.8" (300mm) H x 12.9” (327 mm) W x 3.5” (89 mm) D


• Product weight:    3.0 lbs.


• Gross weight:    3.25 lbs
