Havis Dock For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Advanced Port Replication, Tri RF & Power Supply DS-DELL-432N-3

Havis Dock DS-DELL-432N-3

Replacement part number for DS-DELL-422-3

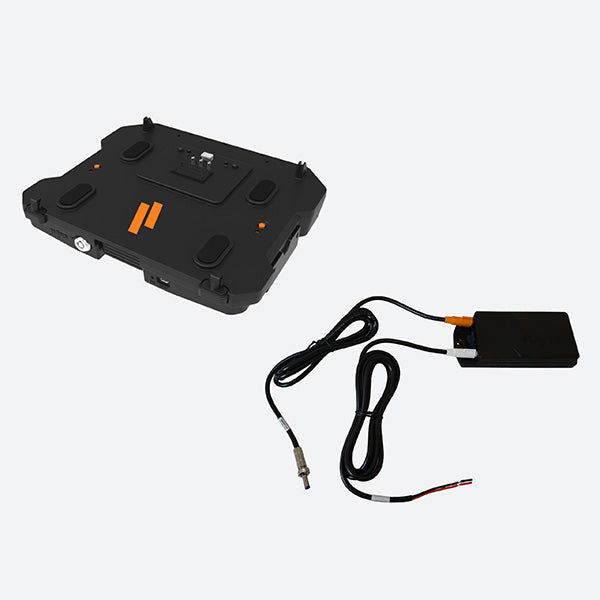

This Havis Docking Station DS-DELL-432N-3 is compatible with numerous Dell rugged laptops. Compatible with the  Dell 5430, 7330, 5420, 5424 and 7424 Notebooks, the DS-DELL-432N-3 comes with Advanced Port Replication (includes HDMI and VGA ports) Triple Pass-Thru Antenna Connections to allow for external antennas to be connected and boost the signal of the Dell laptop as well as a Havis Power Supply. A Havis vehicle dock is purpose built for rugged laptops and features a locking latch mechanism for added security.

DS-DELL-432N-3 Features

• Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
• Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Front facing USB-C (3.2) port
• LED power indicator
• Updated One-handed docking & undocking with pull latch
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Compact and lightweight with a reduced footprint
• U-style mounting bracket with seating notch for easy installation
• Includes 120W Havis Power Supply (120N-A01-T01-1)
• Provides access to all notebook buttons and ports when docked
• Compatible with screen support (DS-DA-412, sold separately)
• Integrated cable management system
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA


DS-DELL-432N-3 Specifications

Compatible devices:    Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:    UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008
Connectivity includes:    Fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1), Serial: DB9 (9-Pin) connection (2), Video: VGA (1), HDMI (1), Speaker & Mic: (1 each, front facing), Input Voltage: 19.5V DC, antenna connections: triple pass-through (TNC connectors)
Dimensions:    Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
Product weight (dock only):    3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
Gross weight:    7 lbs
