Havis Dock for Getac V120 w Advanced Port Replication DS-GTC-1604

Havis Dock DS-GTC-1604

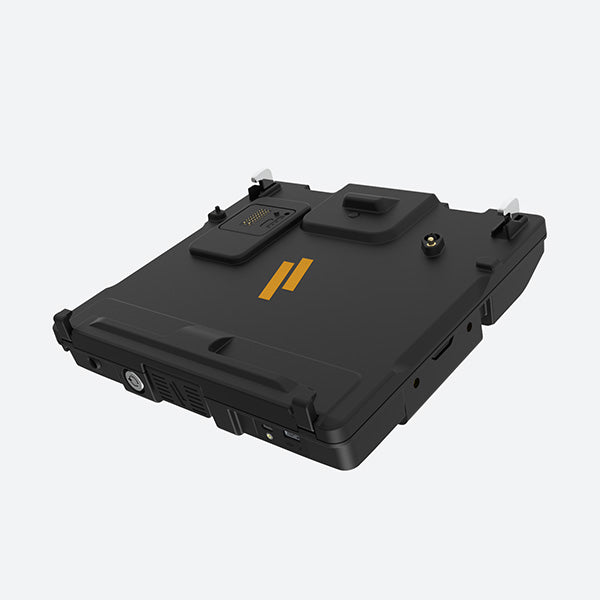

Havis purpose built docks and cradles are a great way to safely secure computers in a vehicle mount. Ready to be installed on a number of Havis mounting options, Havis vehicle docks provide keyed latching while also allowing for port replication and power pass through. The Havis DS-GTC-1604 vehicle dock is purpose built for the new Getac V120 convertible rugged laptop. Accommodating the V120 swivel screen, DS-GTC-1604 provides advanced port replication and power pass through which saves wear and tear on the ports of the rugged computer. Advanced port replication on the V120 dock includes USB 2.0, 3.0 and USB-C as well as RJ56 ethernet port, powered serial and HDMI ports. The lite port replication on other docks does NOT include HDMI. The DS-GTC-1604 does not have any RF pass through and will not allow external antennas to be attached (if this feature is needed please consider alternative part number DS-GTC-1604-4)

DS-GTC-1604 Features

• • Supports Getac's V120 laptops in the Public Sector, Utility Services, Defense, Material Handling, and other demanding environments
  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Optional Quad pass-through antenna connection
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Compact & lightweight while being ultra rugged
  • Lock and key supplied for peace of mind theft deterrence
  • Integrated cable management system
  • Designed to fit all Havis and VESA 75-hole pattern mounting equipment, as well as most competitors
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Made in USA




DS-GTC-1604 Specifications

Compatible computer:    Getac V120
Dimensions:    11.8" (300mm) H x 11.1” (282 mm) W x 3.1” (77 mm) D
Certifications:
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30mph
Bump Testing: IEC-68-2006-27
Cycle Testing: Dock/undock 30K cycles
Environmental Testing: Hot/Cold operational -31° C to 63° C (-23.8° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Thermal Shock: MIL-STD 810H, Method 503.7
FCC, CE, CAN ICES (B), RoHS
EMC Testing: EN 55032, EN 50498
ESD: IEC 10605

Connectivity includes:
Advanced:
(1) USB 2.0 (Front Facing)
(2) USB 3.2
(1) USB-C 2.0 (Front Facing)
(1) USB-C 3.2
(1) RJ45 Ethernet
(1) Powered Serial DB9 (9-Pin)
(1) HDMI

Product weight:    4.7 lbs.
Gross weight:    6 lbs
