Havis Dock for Getac V120 w Advanced Port Replication. Quad RF and Screen Support PKG-DS-GTC-1604-4

Havis Dock PKG-DS-GTC-1604-4

Havis purpose built docks and cradles are a great way to safely secure computers in a vehicle mount. Ready to be installed on a number of Havis mounting options, Havis vehicle docks provide keyed latching while also allowing for port replication and power pass through. The Havis PKG-DS-GTC-1604-4 vehicle dock is purpose built for the new Getac V120 convertible rugged laptop. Accommodating the V120 swivel screen, PKG-DS-GTC-1604-4 provides advanced port replication and power pass through which saves wear and tear on the ports of the rugged computer. Advanced port replication on the V120 dock includes USB 2.0, 3.0 and USB-C as well as RJ56 ethernet port, powered serial and HDMI ports. The lite port replication on other docks does NOT include HDMI. The PKG-DS-GTC-1604-4 includes Quad RF pass through and will allow external antennas to be attached and boost the internal wireless signals of the V120.

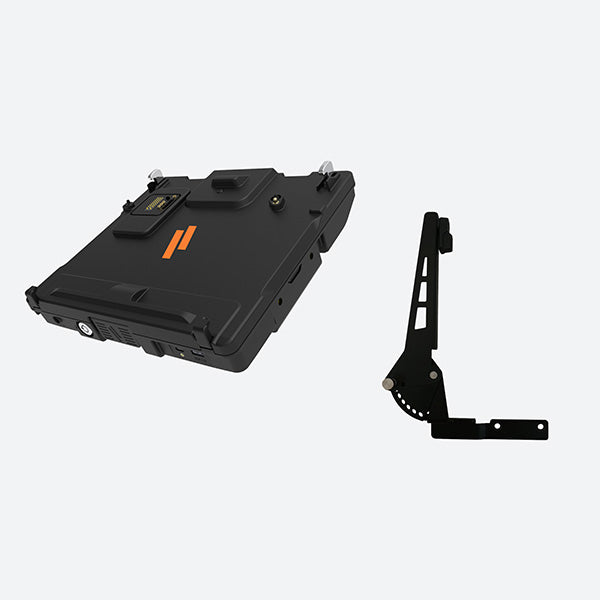

PKG-DS-GTC-1604-4 Kit includes screen support to minimize vibration reaching the V120 display.

PKG-DS-GTC-1604-4 Features

• • Supports Getac's V120 laptops in the Public Sector, Utility Services, Defense, Material Handling, and other demanding environments
  • Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
  • Optional Quad pass-through antenna connection Included
  • Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
  • Compact & lightweight while being ultra rugged
  • Includes DS-DA-424 Screen Support, designed to support the laptop screen and reduce vibration
  • Lock and key supplied for peace of mind theft deterrence
  • Integrated cable management system

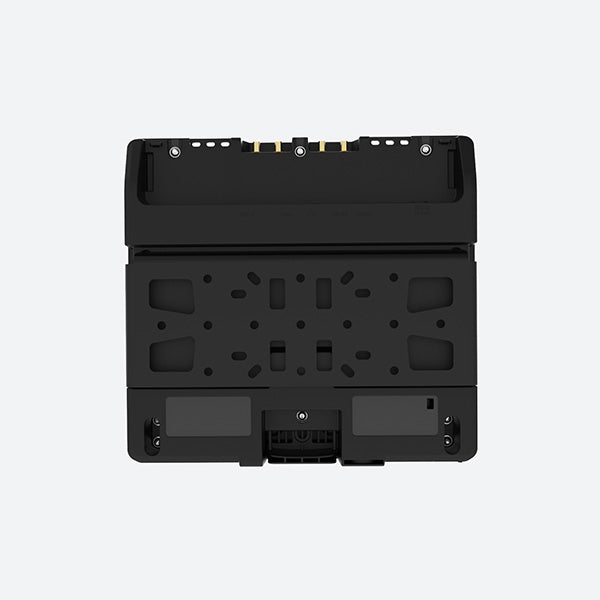

  • Designed to fit all Havis and VESA 75-hole pattern mounting equipment, as well as most competitors
  • Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
  • Rounded edges and corners for comfort and safety
  • Made in USA




PKG-DS-GTC-1604-4 Specifications

Compatible computer:    Getac V120
Dimensions:    11.8" (300mm) H x 11.1” (282 mm) W x 3.1” (77 mm) D
Certifications:
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30mph
Bump Testing: IEC-68-2006-27
Cycle Testing: Dock/undock 30K cycles
Environmental Testing: Hot/Cold operational -31° C to 63° C (-23.8° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Thermal Shock: MIL-STD 810H, Method 503.7
FCC, CE, CAN ICES (B), RoHS
EMC Testing: EN 55032, EN 50498
ESD: IEC 10605

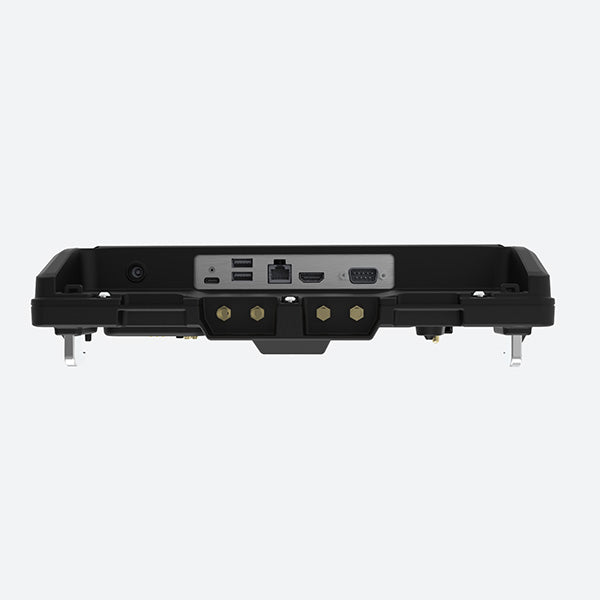

Connectivity includes:
Advanced:
(1) USB 2.0 (Front Facing)
(2) USB 3.2
(1) USB-C 2.0 (Front Facing)
(1) USB-C 3.2
(1) RJ45 Ethernet
(1) Powered Serial DB9 (9-Pin)
(1) HDMI

Product weight:    4.7 lbs.
Gross weight:    6 lbs
