Havis Dock for Getac V120 w Lite Port Replication, Screen Support, Power Supply and Power Mount PKG-DS-GTC-1607-BW

Havis Dock PKG-DS-GTC-1607-BW

Havis purpose built docks and cradles are a great way to safely secure computers in a vehicle mount. Ready to be installed on a number of Havis mounting options, Havis vehicle docks provide keyed latching while also allowing for port replication and power pass through. The Havis PKG-DS-GTC-1607-BW vehicle dock is purpose built for the new Getac V120 convertible rugged laptop. Accommodating the V120 swivel screen, the PKG-DS-GTC-1607-BW provides lite (or standard) port replication and power pass through which saves wear and tear on the ports of the rugged computer. Lite port replication on the V120 dock includes USB 2.0, 3.0 and USB-C as well as RJ56 ethernet port and powered serial. The lite port replication does NOT include HDMI. The PKG-DS-GTC-1607-BW also does NOT include any antenna RF pass through so will not be able to allow external antennas to be attached (if Quad RF antenna pass through is needed please consider alternative part number DS-GTC-1601-4.) The PKG-DS-GTC-1607-BW is designed to fit all Havis and VESA 75-hole mounting patterns.

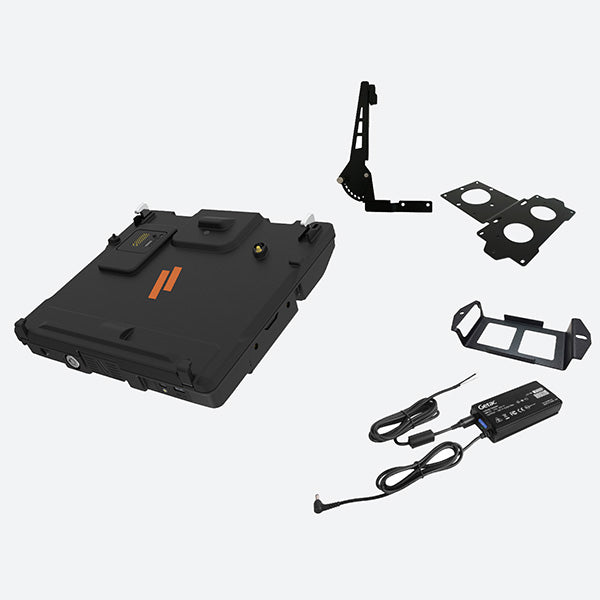

The PKG-DS-GTC-1607-BW kit includes the DS-DA-424 Screen Support for minimizing vibration on the V120. Havis Dock kit also includes a Getac hard wired vehicle power supply for the V120 and power supply mount.

PKG-DS-GTC-1601 Features

• Supports Getac's V120 laptops in the Public Sector, Utility Services, Defense, Material Handling, and other demanding environments
• Includes standard port replication to connect multiple mission-critical peripherals
• Includes DS-DA-424 Screen Support, designed to support the laptop screen and reduce vibration
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Compact & lightweight while being ultra rugged
• Lock and key supplied for peace of mind theft deterrence
• Integrated cable management system
• Designed to fit all Havis and VESA 75-hole pattern mounting equipment, as well as most competitors
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Made in USA

PKG-DS-GTC-1601 Specifications

Compatible computer:    Getac V120
Dimensions:    11.8" (300mm) H x 11.1” (282 mm) W x 3.1” (77 mm) D
Certifications:
Vibration Testing: MIL-STD 810H 514.8
Crash Testing: SAE J1455 30mph
Bump Testing: IEC-68-2006-27
Cycle Testing: Dock/undock 30K cycles
Environmental Testing: Hot/Cold operational -31° C to 63° C (-23.8° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Thermal Shock: MIL-STD 810H, Method 503.7
FCC, CE, CAN ICES (B), RoHS
EMC Testing: EN 55032, EN 50498
ESD: IEC 10605

Connectivity includes:
Standard:
(1) USB 2.0 (Front Facing)
(2) USB 3.2
(1) USB-C 2.0 (Front Facing)
(1) USB-C 3.2
(1) RJ45 Ethernet
(1) Powered Serial DB9 (9-Pin)

Product weight:    4.7 lbs.
Gross weight:    6 lbs
