Havis Dock for Panasonic TOUGHBOOK 33 Lite Port Replication DS-PAN-1211

Havis Dock DS-PAN-1211

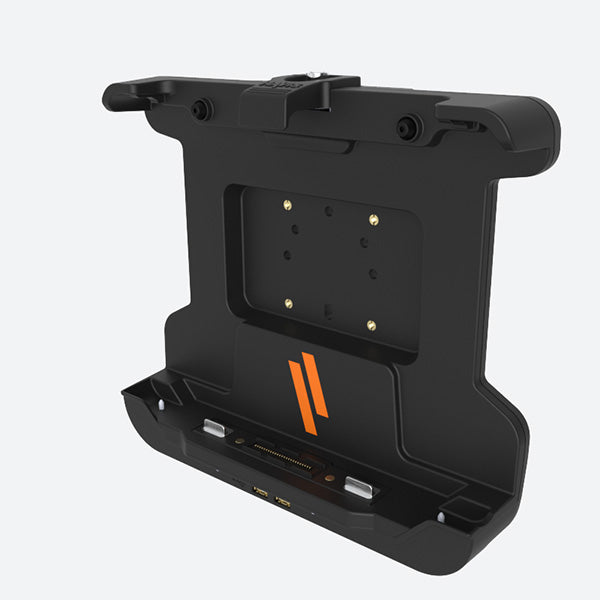

The Havis DS-PAN-1211 vehicle dock is purpose built for the CF-33 Panasonic TOUGHBOOK while in tablet mode (is not compatible with CF-33 optional keyboard.) This dock is compatible with the CF-33 even with the optional 5G module. Safely securing with a locking latch, the DS-PAN-1211 helps deter theft of the CF-33 as an expensive asset. Providing lite port replication (does not include HDMI and VGA but features USB, serial and Ethernet ports) the DS-PAN-1211 also provides power pass through to save wear and tear on the CF-33 and provide convenient docking and undocking. The DS-PAN-1211 does not feature any RF pass through and will be not be able to have external antennas attached to boost the internal wireless signals of the CF-33; if that feature is needed please consider alternative part number DS-PAN-1211-2

DS-PAN-1211 Features

• Supports Panasonic's TOUGHBOOK 33 and TOUGHBOOK 33 5G Tablets in Material Handling, Utility Services, Waste Management and other demanding environments.
• Includes standard port replication to connect multiple mission-critical peripherals
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• One-handed docking & undocking
• Compact & lightweight while being ultra rugged
• Lock and key supplied for peace of mind theft deterrence
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Made in USA

DS-PAN-1211 Specifications

• Compatible computer:    Panasonic TOUGHBOOK 33 and TOUGHBOOK 33 with 5G (Tablet only)

• Certifications:

• Vibration Testing: MIL-STD 810H 514.8

• Crash Testing: SAE J1455 30mph

• Cycle Testing: Dock/undock 30K cycles

• Environmental Testing: Hot/Cold operational -10° C to 50° C (14° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)

• Thermal Shock: MIL-STD 810H, Method 503.7
  FCC, CE, CAN ICES (B), RoHS

• EMC Testing: EN 55032, EN 50498

• ESD: IEC 10605

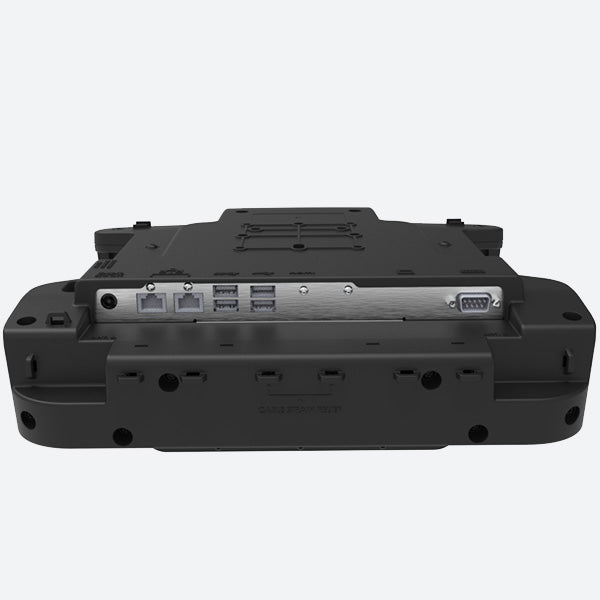

• Port Replication:    Standard: (4) USB 2.0 (2) USB 3.0 (2) RJ45 Ethernet (1) Powered Serial DB9 (9-Pin)

• Product Dimensions:    11.8" (300mm) H x 12.9” (327 mm) W x 3.5” (89 mm) D

• Product weight:    3.3 lbs.

• Gross weight:    3.25 lbs
