Havis Dock for Panasonic TOUGHBOOK 33 Lite Port Replication, Dual RF and Power Supply DS-PAN-1115N-2

Havis Dock DS-PAN-1115N-2

Replacement part for the DS-PAN-1115-2

The Havis DS-PAN-1115N-2 vehicle dock is purpose built for the CF-33 Panasonic TOUGHBOOK while in laptop mode (requires keyboard.) Safely securing with a locking latch, the DS-PAN-1115N-2 helps deter theft of the CF-33 as an expensive asset. Providing lite port replication (does not include HDMI and VGA but features USB, serial and Ethernet ports) the DS-PAN-1115N-2 also provides power pass through to save wear and tear on the CF-33 and provide convenient docking and undocking. The DS-PAN-1115N-2 provides Dual RF pass through and will be able to have external antennas attached to boost the internal wireless signals of the CF-33.

DS-PAN-1115N-2 Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK 33 2-in-1 in public safety, utilities, military, and other demanding environments
• Panasonic certified electronics with lite port replication capability
• Increased connector protection via retractable cover that protects pins when device is absent

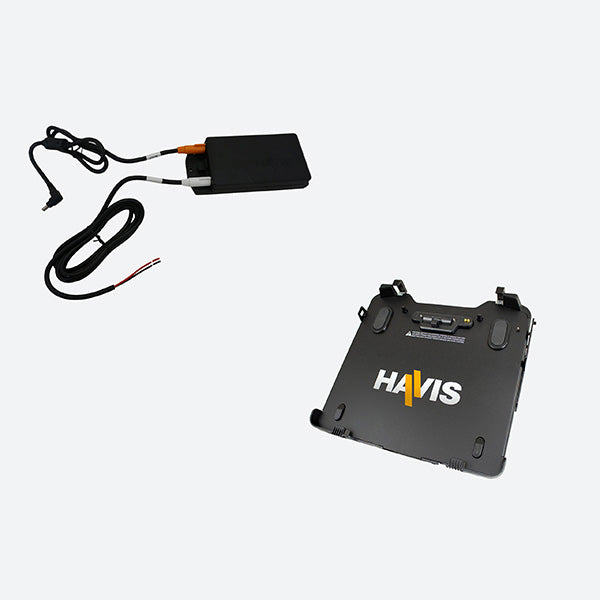

• Bundle includes DS-PAN-1114-2 docking station and 120N-B01-R03-1 Havis power supply

• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Made in the USA

DS-PAN-1115N-2 Specifications

Compatible computer:    Panasonic TOUGHBOOK 33, 2-in-1 laptop (only when computer keyboard is included)
Dimensions:    2.73" (6.93 cm) x 12.5" (31.75 cm) x 11.74" (29.82 cm)
Certifications:    Panasonic Toughbook Certified, UL Safety Certified, Vibration Testing: MIL-STD 810G 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational & storage
Connectivity:     USB: fully-powered USB 2.0 (4), USB 3.0 (2), Ethernet: RJ45 Ethernet (2), Serial: DB9 (9-Pin) connection (1), Input Power: 15.6 V DC, Antenna connections: Dual pass-through (TNC connectors)
Gross weight:    7 lbs
