Havis Dock For Panasonic TOUGHBOOK 40 Laptop with Advanced Port Replication and Power Supply DS-PAN-1505N

Havis Dock DS-PAN-1505N

Replacement part number for DS-PAN-1505

The Havis DS-PAN-1505N vehicle dock is built specifically to mount the fully rugged Panasonic FZ-40 laptop. Safely securing with a locking latch, the DS-PAN-1505N helps deter theft of the FZ-40 and protect it from wear and tear as an expensive asset. Providing advanced port replication (includes both HDMI and VGA as well as features USB, serial and Ethernet ports) the DS-PAN-1505N also provides power pass through to save wear and tear on the FZ-40 and provide convenient docking and undocking. The DS-PAN-1505N does not include any provides RF pass through and will not be able to have external antennas attached to boost the internal wireless signals of the FZ-40; if that feature is needed please consider part number DS-PAN-1505N-4

DS-PAN-1505N Features

• Supports the Panasonic TOUGHBOOK 40 laptop in Public Safety, Federal, Work Truck, and other demanding environments

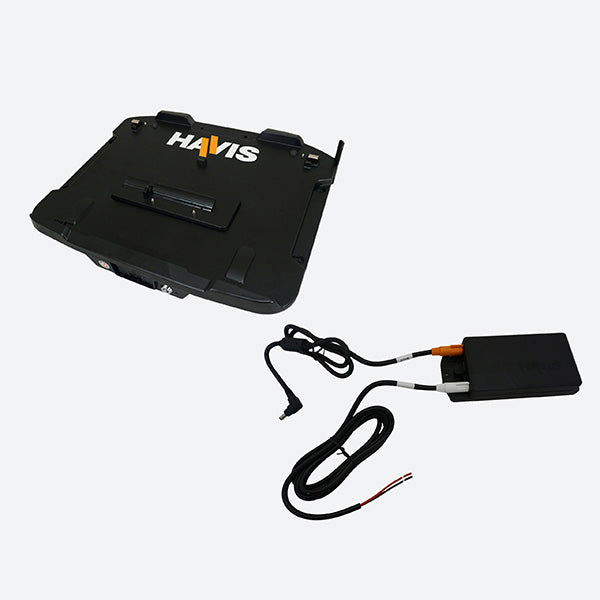

• Bundle includes DS-PAN-1504 docking station& 120N-B01-R03-1 Havis power supply
• Panasonic certified electronics with standard port replication to connect multiple mission-critical peripherals
• NO RF PASS THROUGH
• Spring-loaded connector head ensures constant contact between docking station and computer
• Retractable connector cover offers additional protection to connector head and antenna pins
• Access to critical laptop buttons and ports when docked
• Though-body mounting bracket design for easy installation and increased theft deterrence
• Finger recesses for easy computer removal
• Lightweight, durable and compact design
• Compatible with screen support (DS-DA-423, sold separately)
• Rounded edges for comfort & safety
• Integrated cable management system
• Keyed lock for theft deterrence
• Made in USA

DS-PAN-1505N Specifications

Compatible computer:    Panasonic TOUGHBOOK 40
Dimensions:    W 14.4" (36.6 cm) x D 12.3" (31.3 cm) x H 2.63" (6.7 cm)
Certifications:    Vibration testing: mil-std 810H 514.8, Panasonic: Toughbook Certified, UL Safety Certified, crash test: sae J1455 30mph crash testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles
Connectivity:     Serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 2 Type A (2), USB: fully-powered USB 3 Type A (1), USB: fully-powered USB 2 Type C (1, front), USB: fully-powered USB 3 Type C (2), Ethernet: RJ45 Ethernet (2), HDMI (1), input voltage: 15.6V dc
Product Weight:    6.25 lb (2.5 kg)
Gross weight:    9 lbs
