Havis Dock for Panasonic TOUGHBOOK 55 Advanced Port Replication, Dual RF, Power Supply DS-PAN-432N-2

Havis Dock DS-PAN-432N-2

Replacement part for DS-PAN-432-2

The Havis Docking Station For Panasonic semi rugged TOUGHBOOK 55 Laptop comes with advanced port replication and a purpose built Havis power supply. This dock will hold and lock the FZ-55 securely into place and allow users to connect peripherals and power to the dock itself thereby saving damage and wear and tear from the computer. The DS-PAN-432N-2 is ready to be mounted on any Havis mounting system and comes with integrated cable organization and relief. This DS-PAN-432N-2 dock includes dual RF connections allowing external antennas to be installed and boost internal wireless signals in the FZ-55 such as 4G LTE, 5G or GPS

DS-PAN-432N-2 Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK 55 laptop in public safety, utilities, and other demanding environments
• Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Increased connector protection via retractable cover that protects pins when device is absent
• Lightweight & compact design

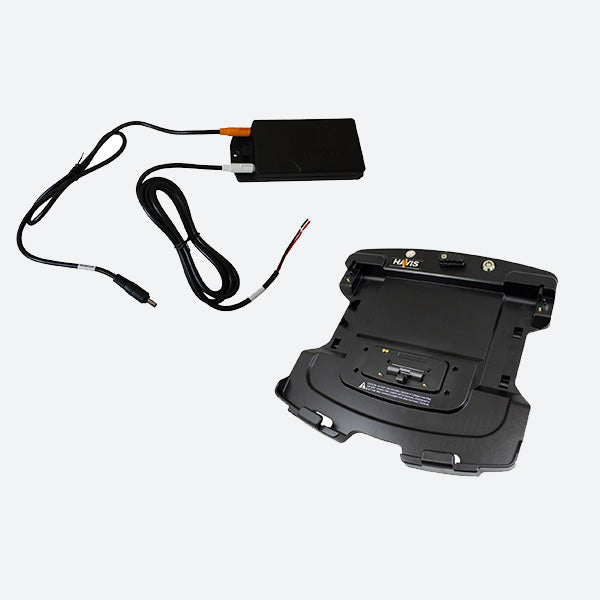

• Bundle includes DS-PAN-431-2 docking station and 120N-B01-S03-1 power supply
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK 54 laptop devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Accommodates all Toughbook 54 and 55 models, providing access to bottom SmartCard reader while computer is secured in docking station
• Made in the USA

DS-PAN-432N-2 Specifications

Compatible computer:    Panasonic TOUGHBOOK 54 and 55
Dimensions:    14.1" (35.8 cm) x 13.7" (34.8 cm) x 3.0" (7.6 cm)
Certifications:    Panasonic: TOUGHBOOK Certified, UL safety certified, Vibration Testing: MIL-STD 810G 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold o
Connectivity includes:    fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), serial: DB9 (9-Pin) connection (1), video: VGA (1), HDMI (1), input voltage: 15.6V DC

DUAL RF

Product weight:    5.4 lbs.
Gross weight:    8.5 lbs
