Havis Dock for Panasonic TOUGHBOOK 55 Standard Port Replication, Dual RF and Power Supply DS-PAN-435N-2

Havis Dock DS-PAN-435N-2

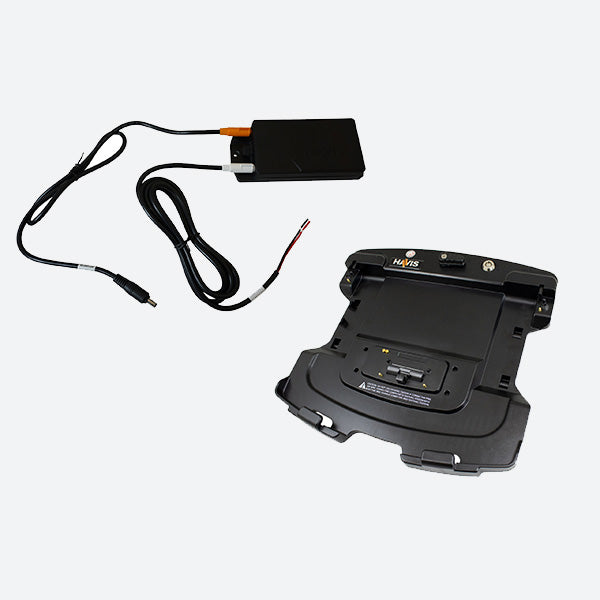

Havis Docking Station For Panasonic TOUGHBOOK 55 Laptop With Standard Port Replication & Havis Power Supply

The Havis DS-PAN-435N-2 Docking Station For Panasonic semi rugged TOUGHBOOK 55 Laptops comes with standard port replication and a purpose built Havis power supply. This dock will hold and lock the FZ-55 securely into place and allow users to connect peripherals and power to the dock itself thereby saving damage and wear and tear from the computer. The DS-PAN-435N-2 is ready to be mounted on any Havis mounting system and comes with integrated cable organization and relief. The DS-PAN-435N-2 features dual rf and allows external antennas to be connected and boost the internal wireless signals on the FZ-55.

DS-PAN-435N-2 Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK 55 laptop in public safety, utilities, and other demanding environments
• Panasonic certified electronics with standard port replication to connect multiple mission-critical peripherals
• Increased connector protection via retractable cover that protects pins when device is absent
• Lightweight & compact design
• Bundle includes DS-PAN-434-2 docking station and 120N-B01-S03-1 power supply
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK 54 laptop devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Accommodates all Toughbook 54 and 55 models, providing access to bottom SmartCard reader while computer is secured in docking station
• Made in the USA

DS-PAN-435N-2 Specifications

Compatible computer:    Panasonic TOUGHBOOK 54 and 55
Dimensions:    14.1" (35.8 cm) x 13.7" (34.8 cm) x 3.0" (7.6 cm)
Certifications:    Panasonic: TOUGHBOOK Certified, UL safety certified,

Vibration Testing: MIL-STD 810G 514.8

crash test: SAE J1455 30mph Crash Testing

cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold o
Connectivity includes: Fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), Serial: DB9 (9-Pin) connection (1), Input Voltage: 15.6V DC, Antenna: Dual hi-gain (TNC connector)
Product weight:    5.4 lbs.
Gross weight:    4 lbs
