Havis Dock for Panasonic TOUGHBOOK G2 Advanced Port Replication w Power Supply DS-PAN-1012N

Havis Dock DS-PAN-1012N

Replacement part for DS-PAN-1012

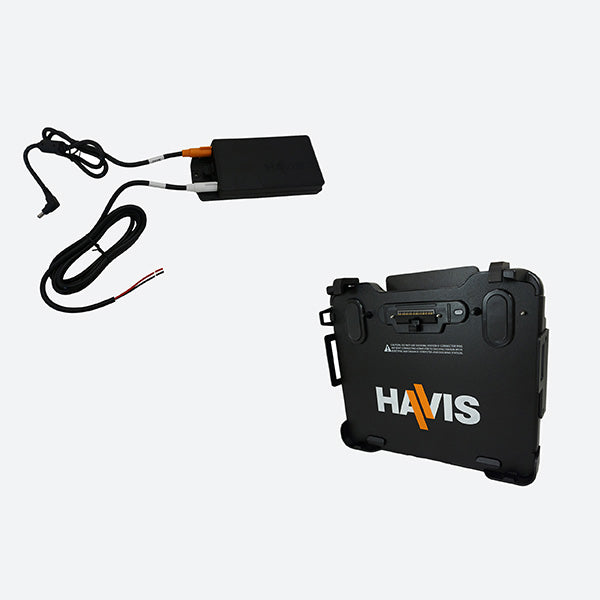

The Havis DS-PAN-1012N vehicle dock is a durable and highly useful addition to an in-vehicle workstation. Built to support the fully rugged Panasonic TOUGHBOOK FZ-G2 while in laptop mode (with keyboard) the DS-PAN-1012N provides power and advanced port replication. This Havis dock bundle includes a Havis vehicle adapter (part number 120N-B01-R03-1) as well as the dock. While the DS-PAN-1012N provides both power and port replication, it does not have any RF pass through and cannot connect to external antennas; if that feature is needed please consider part number DS-PAN-1012N-2 which is a dock that features dual RF.

DS-PAN-1012N Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK G2 2-in-1 in public safety, military, utilities, and other demanding environments
• Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Increased connector protection via retractable cover that protects pins when device is absent
• Lightweight & compact design
• Bundles include DS-PAN-1011 & 120N-B01-R03-1 Havis power supply
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK 20 2-in-1 devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Made in the USA

DS-PAN-1012N Specifications

Compatible computers:    Panasonic TOUGHBOOK G2 2-in-1 & TOUGHBOOK 20 2-in-1 devices (Requires computer keyboard)
Dimensions:    2.5" (6.35 cm) x 11.06" (28.09 cm) x 9.6" (24.38 cm)
Certifications:    Panasonic Toughbook Certified, UL Safety Certified, Vibration Testing: MIL-STD 810G 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational & storage
Connectivity:    USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), Serial: DB9 (9-Pin) connection (1), Video: HDMI (1), VGA (1), Dock Input Power: 16.0 V DC
Product weight:    4.30 lbs. (1.95 kg)
Gross weight:    6 lbs
