Havis Dock for Panasonic TOUGHBOOK G2 Standard Port Replication, Dual RF and Power Supply DS-PAN-725N-2

Havis Docking Station DS-PAN-725N-2

Replacement part for DS-PAN-725-2

The DS-PAN-725N-2 Havis vehicle dock is purpose built for the fully rugged Panasonic TOUGHBOOK FZ-G2 (while in tablet mode without keyboard.) Providing a safe and secure locking latch mechanism, the DS-PAN-725N-2 will hold the FZ-G2 tablet safely in the vehicle and is ready to be mounted to a Havis mounting solution. The DS-PAN-725N-2 includes standard (lite) port replication and power supply able to power the FZ-G2. The Havis Dock DS-PAN-725N-2 also includes Dual RF pass through allowing external antennas to be installed and boost the wireless signals of the FZ-G2

DS-PAN-725N-2 Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK G2 tablet in material handling, enterprise, public safety, military, and other demanding environments
• Panasonic certified electronics with standard port replication to connect multiple mission-critical peripherals
• Integrated VESA 75 mounting pattern
• Lightweight & compact design

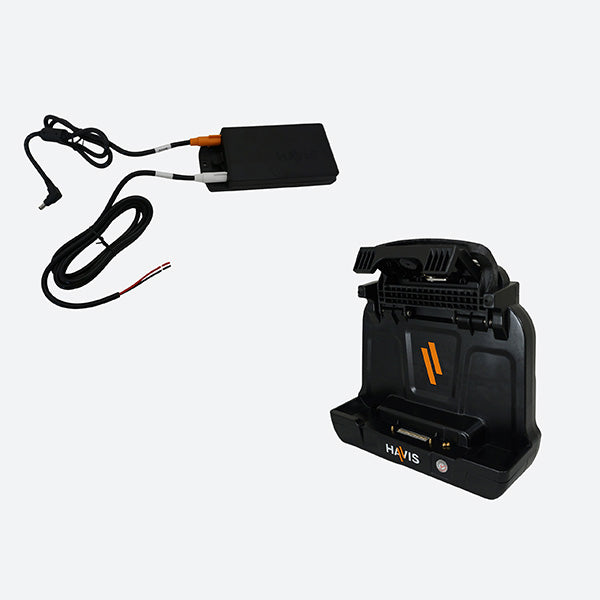

• Bundle includes DS-PAN-724-2 docking station and 120N-B01-S03-1 Havis power supply

• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK G1 tablet devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Made in the USA

DS-PAN-725N-2 Specifications

Compatible computers:    Panasonic TOUGHBOOK G2 & G1
Dimensions:    10.0" (25.5 cm) x 11.4" (28.9 cm) x 4.4" (11.1 cm)
Certifications:    Vibration Testing: MIL-STD 810G 514.8, Panasonic: TOUGHBOOK Certified, UL safety certified, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, e-marked via vca
Connectivity includes:    Serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), noise filtering: yes, EMI filtering: yes, input voltage: 16V dc, Antenna: dual hi-gain (TNC connector)
Gross weight:    4 lbs
