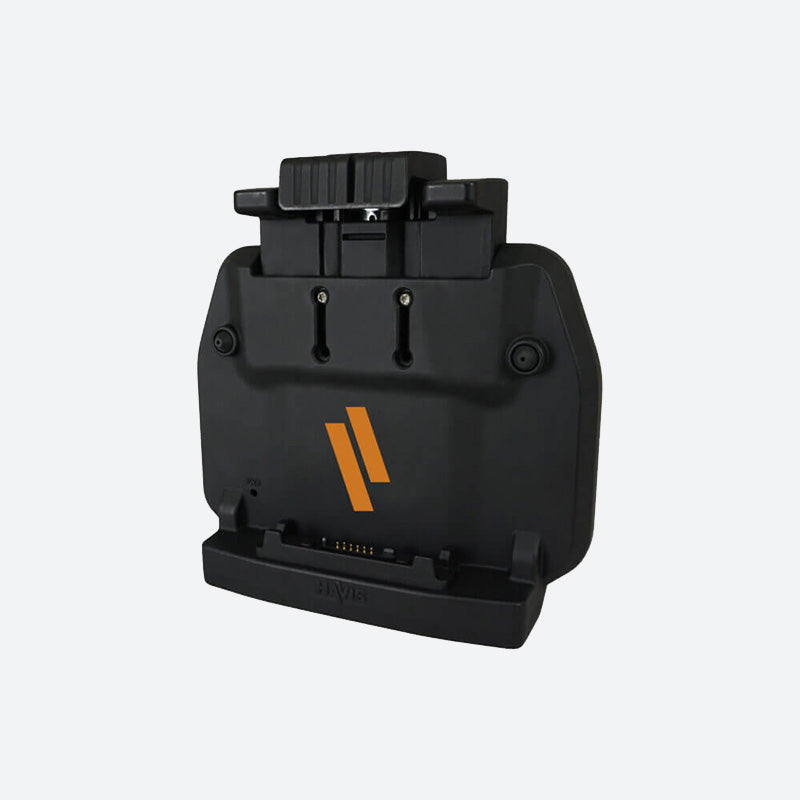

Havis Dock for Zebra 8-in. & 10-in. ET4X Series Tablets with Advanced Port Power Supply DS-ZEB-304

Havis Dock DS-ZEB-304

Havis Docking Station for Zebra 8-in and 10-in ET4X Series Tablets with Advanced Port Replication and Internal Non-isolated Power Supply

DS-ZEB-304 Features

• Supports Zebra's ET4x Series in Material Handling, Retail & Hospitality, Utility Services, Waste Management and other demanding environments
• Unique height-adjustable design is compatible with both 8" and 10" devices with rugged boots
• Advanced port replication includes two USB2.0 ports, RJ45 Ethernet and powered serial port
• Internal, non-isolated power supply (9-36V)
• LED power indicator
• One-handed docking & undocking
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Provides access to critical buttons, ports, and bar code scanner when tablet is docked
• Compact & lightweight
• Compatible with attachable hand and shoulder straps
• Integrated strain relief and cable routing features
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in the USA

DS-ZEB-304 Specifications

Compatible Devices:    Zebra ET40 and ET45 (both 8" and 10" devices with required, rugged boots)
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 50° C (-4° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)

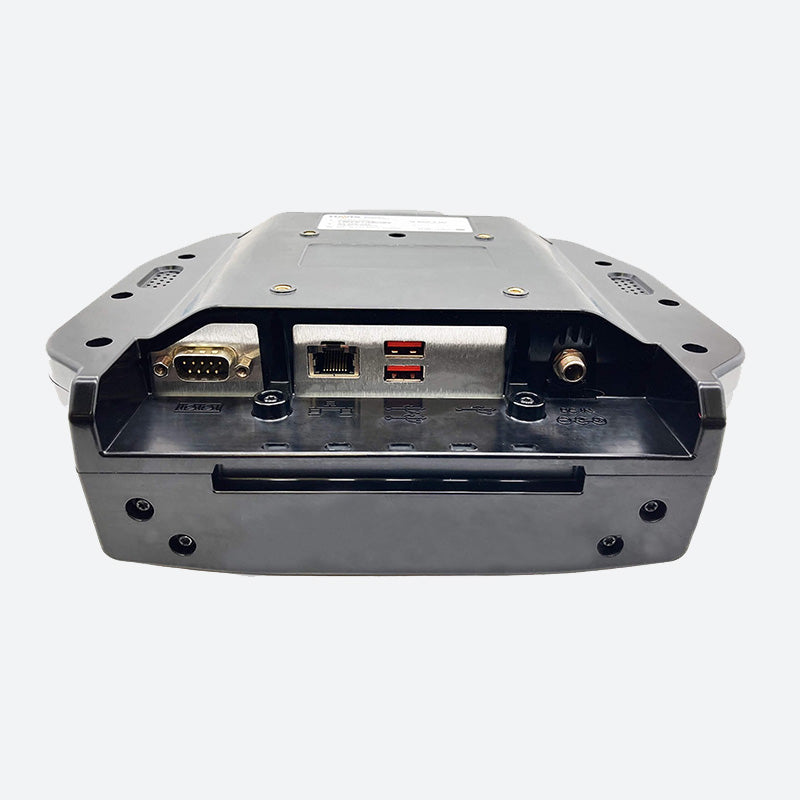

Port Replication:    Advanced: (2) USB2.0 ports (1) RJ45 Ethernet (1) Powered serial port (5V)
Dimensions:    8" Configuration Unlatched: 7.7" (196 mm) H 8.6” (219 mm) W 2.9” (74 mm) D 7.2” (183 mm) H Latched
10" Configuration Unlatched: 8.8" (253 mm) H 8.0” (219 mm) W 2.9” (74 mm) D 8.3” (211 mm) H Latched
Product weight:    1.86 lbs (0.85kg)
Gross weight:    2.25 lbs
